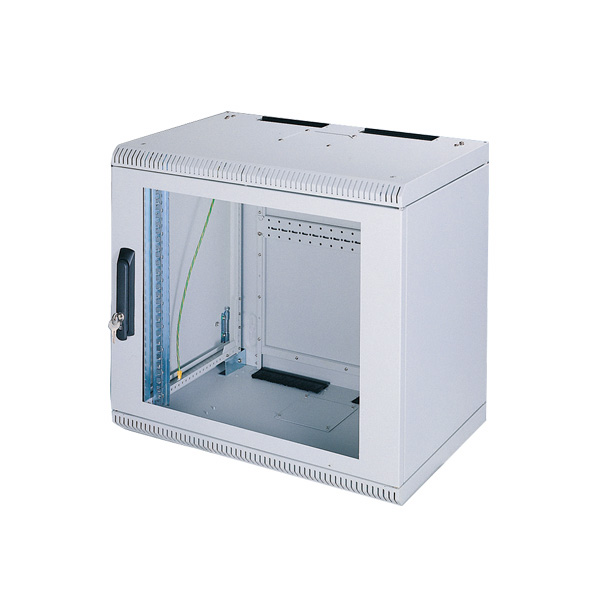

CLM-23012 19" Heavy Wallmount Rack

Heavy-duty 19" Wallmount Rack with multi-function applications

See more pictures

  • 19" Industrial Equipments
  • ANSI/EIA-RS-310C/D
  • 1.2mm Sheet Steel
  • Powder coating for RoHS compliant
  • UL/CE certification
  • Black & Beige for color selections

Multi-function Wallmount Rack:

Features:

  • Applications for networking, communication & monitoring system, such as industrial hubs.
  • With 19" industrial standard, such as ANSI/EIA-RS-310C/D.
  • D.I.Y flat-package for saving freight cost and more room.
  • Flexible designs for different purposes, such with rear panel on the wall or with castors on the ground.
  • Vented holes on frames for better cable management.
  • Two additional entries with brushes on the roof and plinth isolate dust and keep systems secure.
  • An optional cooling system set on the roof helps control systems temperature.
  • Dismantled panels are good for saving assembly and maintaining time.
  • Temperated glass on the door can keep security of the system and convenient to monitor the conditon without opening the door.
  • Powder coating for RoHS compliant.
  • Black & Beige for color selections.
  • OEM & ODM are welcomed to contact us.
Width Depth H(mm) H(U) Model No.
600mm 400mm 398.35 6U CLM-23012-406
600mm 400mm 531.7 9U CLM-23012-409
600mm 400mm 665.05 12U CLM-23012-412
600mm 400mm 798.4 15U CLM-23012-415
600mm 400mm 931.75 18U CLM-23012-418
600mm 400mm 1065.1 21U CLM-23012-421
600mm 400mm 1198.45 24U CLM-23012-424

600mm 500mm 398.35 6U CLM-23012-506
600mm 500mm 531.7 9U CLM-23012-509
600mm 500mm 665.05 12U CLM-23012-512
600mm 500mm 798.4 15U CLM-23012-515
600mm 500mm 931.75 18U CLM-23012-518
600mm 500mm 1065.1 21U CLM-23012-521
600mm 500mm 1198.45 24U CLM-23012-524

600mm 600mm 665.05 12U CLM-23012-612
600mm 600mm 798.4 15U CLM-23012-615
600mm 600mm 931.75 18U CLM-23012-618
600mm 600mm 1065.1 21U CLM-23012-621
600mm 600mm 1198.45 24U CLM-23012-624
