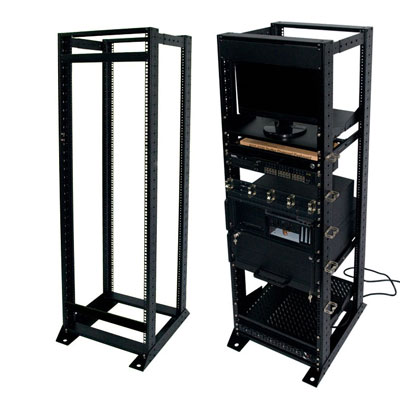

CLM-2212 One Frame Open Rack


19" cost-effective open frame rack with two frames for telecom appliance

See More

  • Main Structure:
    2.0mm Sheet Steel Frame
    3.0mm Sheet Steel Plinth
  • Two Frames
  • Width: 520mm
    Plinth Depth: 600mm/ 700mm/ 800mm/ 900mm/ 1000mm
  • Height: 15u/ 20u/ 31u/ 36u/ 40u/ 45u
  • 2.6" Loading Castor(Option)
  • Flat Packages
Rackmount Accessories Variants
Features:
  • Applicaions for servers, telecommunication,monitor and cabling networking system.
  • Meets 19" industrial standard, ANSI/EIA-RS-310C/D
  • Two frames for steady and heavy-loading server system.
  • U-shaped mounting frame provide a steady construction.
  • Flat packing for saving more freight cost and room.
  • Powder coating for RoHS compliant .
  • Black & Beige for color selections.
Width Depth H(mm) H(U) Model No.
520mm 600mm 709.3 15U CLM-2212-6015
520mm 600mm 931.5 20U CLM-2212-6020
520mm 600mm 1420.5 31U CLM-2212-6031
520mm 600mm 1642.75 36U CLM-2212-6036
520mm 600mm 1820.55 40U CLM-2212-6040
520mm 600mm 2042.8 45U CLM-2212-6045

520mm 700mm 709.3 15U CLM-2212-7015
520mm 700mm 931.5 20U CLM-2212-7020
520mm 700mm 1420.5 31U CLM-2212-7031
520mm 700mm 1642.75 36U CLM-2212-7036
520mm 700mm 1820.55 40U CLM-2212-7040
520mm 700mm 2042.8 45U CLM-2212-7045

520mm 800mm 709.3 15U CLM-2212-8015
520mm 800mm 931.5 20U CLM-2212-8020
520mm 800mm 1420.5 31U CLM-2212-8031
520mm 800mm 1642.75 36U CLM-2212-8036
520mm 800mm 1820.55 40U CLM-2212-8040
520mm 800mm 2042.8 45U CLM-2212-8045

520mm 900mm 709.3 15U CLM-2212-9015
520mm 900mm 931.5 20U CLM-2212-9020
520mm 900mm 1420.5 31U CLM-2212-9031
520mm 900mm 1642.75 36U CLM-2212-9036
520mm 900mm 1820.55 40U CLM-2212-9040
520mm 900mm 2042.8 45U CLM-2212-9045

520mm 1000mm 709.3 15U CLM-2212-10015
520mm 1000mm 931.5 20U CLM-2212-10020
520mm 1000mm 1420.5 31U CLM-2212-10031
520mm 1000mm 1642.75 36U CLM-2212-10036
520mm 1000mm 1820.55 40U CLM-2212-10040
520mm 1000mm 2042.8 45U CLM-2212-10045
