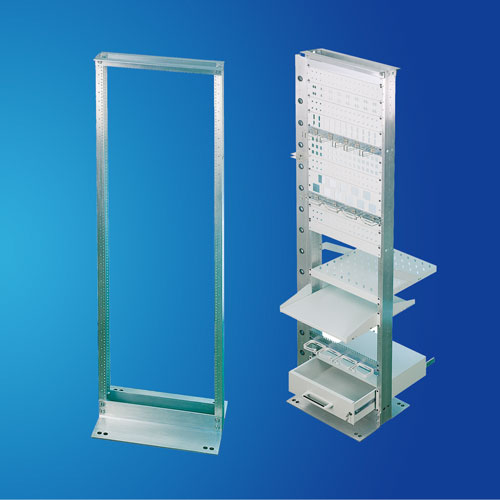

CLM-2251 One Frame Aluminum Section Open Rack

19" aluminum open frame rack with one frame for telecom appliance

See More



  • Main Structure:
    Extruded Aluminum Section
  • One Frame
  • Width: 513mm
    Plinth Depth: 376mm
  • Height: 31u/ 36u/ 40u/ 45u
  • Flat Packages
Rackmount Accessories Variants
  • Applicaions for servers, telecommunication,monitor and cabling networking system.
  • Meets 19" industrial standard, ANSI/EIA-RS-310C/D
  • Aluminium structure
  • One frame for a simple system or cabling components
  • U-shaped mounting frame provide a steady construction.
  • Flat packing for saving more freight cost and room.
  • Powder coating for RoHS compliant .
  • Black & Beige for color selections.

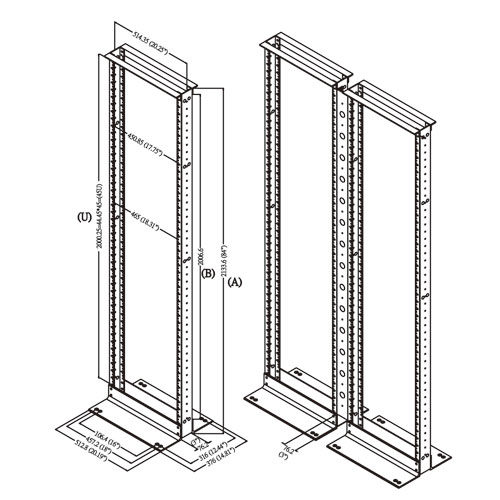

Width Depth H(mm) H(U) Model No.
513mm 376mm 1514.9 31U CLM-2251-31
513mm 376mm 1737.2 36U CLM-2251-36
513mm 376mm 1911.4 40U CLM-2251-40
513mm 376mm 2133.6 45U CLM-2251-45
