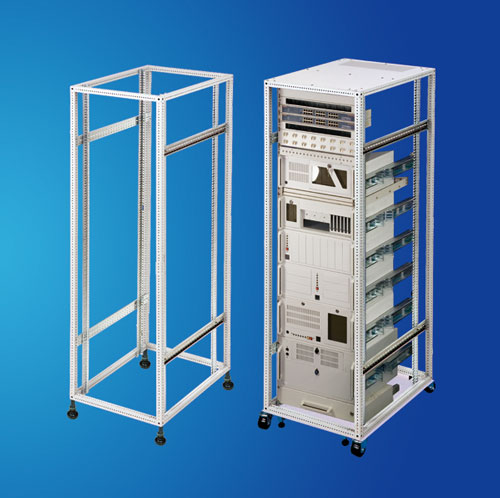

CLM-226XX-XX Multi-function steel Open Frame Rack


19",opem,rack,racks,cabinet,cabinets

See More

  • Main Structure: Square steel welding frame with side outlets
  • Assembly Parts: Flat Roof, Plinth, Posts, Depth Stays, Mounting Angles, Castor(or Leveling Feet)
  • Width: 600mm
    Depth: 564mm/ 664mm/ 764mm/ 864mm/ 964mm
  • Height: 12u/ 16u/ 21u/ 23u/ 25u/ 30u/ 34u/ 36u/ 39u/ 41u/ 43u
  • With castor or Leveling Feet
  • Flat Packages

Rackmount Accessories Variants

Optional Doors Variant:
Glass Door, Flat Door, Side Panel, Vented Mesh Door, Arch Mesh Door, and so on.



Features:
  • Applicaions for servers, telecommunication,monitor and cabling networking system.
  • Meets 19" industrial standard, ANSI/EIA-RS-310C/D
  • Strong main frame of Square posts for steady and heavy-loading server system.
  • Heavy-duty loading up to 1200 kgs.
  • F-shaped mounting frame provide a steady construction.
  • Flat packing for saving more freight cost and room.
  • Powder coating for RoHS compliant .
  • Black & Beige for color selections.
Width Depth H(mm) H(U) Model No.
600mm 600mm 600mm 12U CLM-22660-12
600mm 600mm 800mm 16U CLM-22660-16
600mm 600mm 1000mm 21U CLM-22660-21
600mm 600mm 1100mm 23U CLM-22660-23
600mm 600mm 1200mm 25U CLM-22660-25
600mm 600mm 1400mm 30U CLM-22660-30
600mm 600mm 1600mm 34U CLM-22660-34
600mm 600mm 1700mm 36U CLM-22660-36
600mm 600mm 1800mm 39U CLM-22660-39
600mm 600mm 1900mm 41U CLM-22660-41
600mm 600mm 2000mm 43U CLM-22660-43

600mm 700mm 600mm 12U CLM-22670-12
600mm 700mm 800mm 16U CLM-22670-16
600mm 700mm 1000mm 21U CLM-22670-21
600mm 700mm 1100mm 23U CLM-22670-23
600mm 700mm 1200mm 25U CLM-22670-25
600mm 700mm 1400mm 30U CLM-22670-30
600mm 700mm 1600mm 34U CLM-22670-34
600mm 700mm 1700mm 36U CLM-22670-36
600mm 700mm 1800mm 39U CLM-22670-39
600mm 700mm 1900mm 41U CLM-22670-41
600mm 700mm 2000mm 43U CLM-22670-43

600mm 800mm 600mm 12U CLM-22680-12
600mm 800mm 800mm 16U CLM-22680-16
600mm 800mm 1000mm 21U CLM-22680-21
600mm 800mm 1100mm 23U CLM-22680-23
600mm 800mm 1200mm 25U CLM-22680-25
600mm 800mm 1400mm 30U CLM-22680-30
600mm 800mm 1600mm 34U CLM-22680-34
600mm 800mm 1700mm 36U CLM-22680-36
600mm 800mm 1800mm 39U CLM-22680-39
600mm 800mm 1900mm 41U CLM-22680-41
600mm 800mm 2000mm 43U CLM-22680-43

600mm 900mm 600mm 12U CLM-22690-12
600mm 900mm 800mm 16U CLM-22690-16
600mm 900mm 1000mm 21U CLM-22690-21
600mm 900mm 1100mm 23U CLM-22690-23
600mm 900mm 1200mm 25U CLM-22690-25
600mm 900mm 1400mm 30U CLM-22690-30
600mm 900mm 1600mm 34U CLM-22690-34
600mm 900mm 1700mm 36U CLM-22690-36
600mm 900mm 1800mm 39U CLM-22690-39
600mm 900mm 1900mm 41U CLM-22690-41
600mm 900mm 2000mm 43U CLM-22690-43

600mm 1000mm 600mm 12U CLM-226100-12
600mm 1000mm 800mm 16U CLM-226100-16
600mm 1000mm 1000mm 21U CLM-226100-21
600mm 1000mm 1100mm 23U CLM-226100-23
600mm 1000mm 1200mm 25U CLM-226100-25
600mm 1000mm 1400mm 30U CLM-226100-30
600mm 1000mm 1600mm 34U CLM-226100-34
600mm 1000mm 1700mm 36U CLM-226100-36
600mm 1000mm 1800mm 39U CLM-226100-39
600mm 1000mm 1900mm 41U CLM-226100-41
600mm 1000mm 2000mm 43U CLM-226100-43
