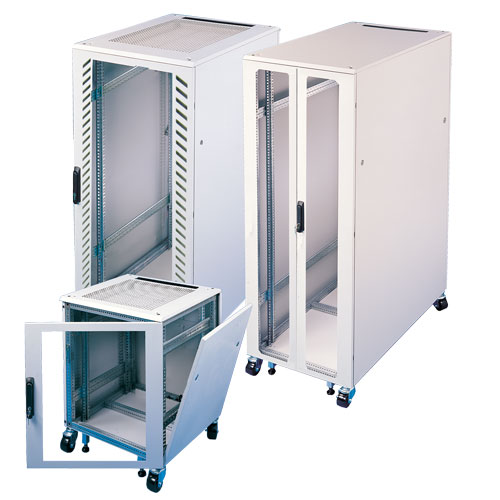

19" Server Rack/ Network Cabinet(CLM-246XX-XX)

Sheet Steel Cabinet Rack
see more:

  • 19" Industrial Equipments
  • ANSI/EIA-RS-310C/D
  • Sheet Steel Structure
  • Powder coating for RoHS compliant
  • UL/CE Certification
  • Color: Black/ Beige
  • Flat Packages
  • Loading Weight: 1600 KGS up
Patent Pended No.:
TW M271065
JP 3118290
GE 20020050163511
US 11/266,282
Sheet Steel Cabinet Rack

Door Variants:
1. Vented Glass Door
2. Mesh Door
3. Glass Door
4. Flat Door
5. R-Shaped Door
6. Folio Doors/ Two Door/ Three Doors/ Four Doors

Roof Panel Variants:
1. Flat Panel
2. Vented Panel
3. Panel in 18mm Height
4. Ventilation Panel

Mounting Angles:
1. F-shaped
2. U-shaped
3. M-shaped
4. S-shaped
5. L-shaped

Rackmount Accessory Variants

Feature:

  • Applicaions for server system, telecommunication system, community network, network system, monitoring system.
  • Meets 19" industrial standard, such as ANSI/EIA-RS-310C/D
  • High Loading Weight for your devices by the strong structure.
  • Adjustable Mounting Angles by per patch holes of 50mm
  • Multi-function of main posts for your cable management
  • "D.I.Y." flat packages for saving more freight cost and room.
  • Two additional entries on the roof and plinth are good for the cable management.
  • The vented design on the top panel , the bottom panel & the front door can efficiently reduce the interior heat for higher ventilation.
  • Sponges on cable entries can block dusty and keep cable and keep the system secure.
  • Design of the roof & the plinth for easily assembly & dismantled.
  • Temperated on the door can keep security of the system and convenient to monitor the condition without opening the door.
  • Powder coating for RoHS compliant .
  • Black & Beige for color selections .
  • All product are made in Taiwan.
  • ODM & OEM product are welcomed to contact us.

Width Depth Height(mm) Height(U) Model No.
600mm 600mm 600mm 12U CLM-24660-12KI
600mm 600mm 800mm 16U CLM-24660-16KI
600mm 600mm 1000mm 21U CLM-24660-21KI
600mm 600mm 1100mm 23U CLM-24660-23KI
600mm 600mm 1200mm 25U CLM-24660-25KI
600mm 600mm 1400mm 30U CLM-24660-30KI
600mm 600mm 1600mm 34U CLM-24660-34KI
600mm 600mm 1700mm 36U CLM-24660-36KI
600mm 600mm 1800mm 39U CLM-24660-39KI
600mm 600mm 1900mm 41U CLM-24660-41KI
600mm 600mm 2000mm 43U CLM-24660-43KI

600mm 700mm 600mm 12U CLM-24670-12KI
600mm 700mm 800mm 16U CLM-24670-16KI
600mm 700mm 1000mm 21U CLM-24670-21KI
600mm 700mm 1100mm 23U CLM-24670-23KI
600mm 700mm 1200mm 25U CLM-24670-25KI
600mm 700mm 1400mm 30U CLM-24670-30KI
600mm 700mm 1600mm 34U CLM-24670-34KI
600mm 700mm 1700mm 36U CLM-24670-36KI
600mm 700mm 1800mm 39U CLM-24670-39KI
600mm 700mm 1900mm 41U CLM-24670-41KI
600mm 700mm 2000mm 43U CLM-24670-43KI

600mm 800mm 600mm 12U CLM-24680-12KI
600mm 800mm 800mm 16U CLM-24680-16KI
600mm 800mm 1000mm 21U CLM-24680-21KI
600mm 800mm 1100mm 23U CLM-24680-23KI
600mm 800mm 1200mm 25U CLM-24680-25KI
600mm 800mm 1400mm 30U CLM-24680-30KI
600mm 800mm 1600mm 34U CLM-24680-34KI
600mm 800mm 1700mm 36U CLM-24680-36KI
600mm 800mm 1800mm 39U CLM-24680-39KI
600mm 800mm 1900mm 41U CLM-24680-41KI
600mm 800mm 2000mm 43U CLM-24680-43KI

600mm 900mm 600mm 12U CLM-24690-12KI
600mm 900mm 800mm 16U CLM-24690-16KI
600mm 900mm 1000mm 21U CLM-24690-21KI
600mm 900mm 1100mm 23U CLM-24690-23KI
600mm 900mm 1200mm 25U CLM-24690-25KI
600mm 900mm 1400mm 30U CLM-24690-30KI
600mm 900mm 1600mm 34U CLM-24690-34KI
600mm 900mm 1700mm 36U CLM-24690-36KI
600mm 900mm 1800mm 39U CLM-24690-39KI
600mm 900mm 1900mm 41U CLM-24690-41KI
600mm 900mm 2000mm 43U CLM-24690-43KI

600mm 1000mm 600mm 12U CLM-246100-12KI
600mm 1000mm 800mm 16U CLM-246100-16KI
600mm 1000mm 1000mm 21U CLM-246100-21KI
600mm 1000mm 1100mm 23U CLM-246100-23KI
600mm 1000mm 1200mm 25U CLM-246100-25KI
600mm 1000mm 1400mm 30U CLM-246100-30KI
600mm 1000mm 1600mm 34U CLM-246100-34KI
600mm 1000mm 1700mm 36U CLM-246100-36KI
600mm 1000mm 1800mm 39U CLM-246100-39KI
600mm 1000mm 1900mm 41U CLM-246100-41KI
600mm 1000mm 2000mm 43U CLM-246100-43KI
