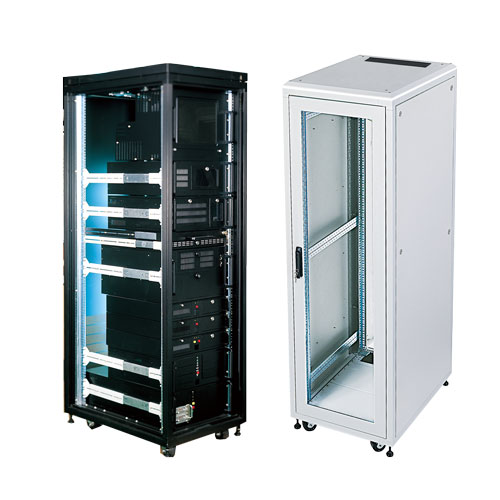

19" Aluminium Server Rack/ Network Cabinet(CLM-216XX-XX)

19" Aluminium Server Rack/ Network Cabinet
see more:
Application for 19" Aluminium Server Rack/ Network Cabinet Application of open doors for 19" Aluminium Server Rack/ Network Cabinet Application of servers for 19" Aluminium Server Rack/ Network Cabinet Application of control system for 19" Aluminium Server Rack/ Network Cabinet Free standing 19" aluminum Server Racks/ Telecom Cabinets Free standing 19" aluminum Server Racks/ Telecom Cabinets with two doors
Free standing 19" aluminum Server Racks/ Telecom Cabinets with two open doors Free standing 19" aluminum Server Racks/ Telecom Cabinets with two open doors Free standing 19" aluminum Server Racks/ Telecom Cabinets with three doors Free standing 19" aluminum Server Racks/ Telecom Cabinets with three open doors Free standing 19" aluminum Server Racks/ Telecom Cabinets with three open doors Free standing 19" aluminum Server Racks/ Telecom Cabinets with one mesh door
Free standing 19" aluminum Server Racks/ Telecom Cabinets with two mesh doors Free standing 19" aluminum Server Racks/ Telecom Cabinets with two open mesh doors Free standing 19" aluminum Server Racks/ Telecom Cabinets with three mesh doors Free standing 19" aluminum Server Racks/ Telecom Cabinets with three open mesh doors Drawing of Free standing 19" aluminum Server Racks/ Telecom Cabinets Drawing of Free standing 19" aluminum Server Racks/ Telecom Cabinets
  • 19" Industrial Equipments
  • ANSI/EIA-RS-310C/D
  • Extruded Aluminium Section, #6063.
  • Powder coating for RoHS compliant
  • UL/CE Certification
  • Vibration Test
  • Color: Black/ Beige
  • Flat Packages
  • Loading Weight: 1600 KGS up
Petent Pended No.:
Taiwan 187825, 181975, 190521 90201748, 91218223
USA 6,467,640 69/975,940
Germany 20115454, 20111765.7
China ZL012231604.0 , 012603147 02233722.9
Aluminium Cabinet Rack

Door Variants:
1. Vented Glass Door
2. Mesh Door
3. Glass Door
4. Flat Door
5. Folio Doors/ Two Door/ Three Doors/ Four Doors

Roof Panel Variants:
1. Flat Panel
2. Vented Panel
3. Vented Skirt in 46mm Height
4. Ventilation Panel

Mounting Angles:
1. F-shaped
2. U-shaped
3. M-shaped
4. S-shaped
5. L-shaped
6. R-shaped

Rackmount Accessory Variants

Feature:

  • Applications for servers, networking system & monitoring system, such as IBM and INTEL servers.
  • With 19" industrial standard, such as ANSI/EIA-RS-310C/D.
  • Central standard ministry vibration test approve.
  • The extruded aluminum construction, alley #6063, are integrated stability, heavy-loading, over 1200 kgs, and light weight together.
  • A patent pended swing lock protect the system from unauthorized operations.
  • Two entries with brushes on the roof and plinth isolate dusty and keep systems and cable secure.
  • The vented design on the top panel , the bottom panel & the front door can efficiently reduce the interior heat for higher ventilation.
  • Design of the roof & the plinth for easily assembled & dismantled.
  • Temperated glass on the door can keep security of the system and convenient to monitor the condition without opening the door.
  • Powder coating for RoHS compliant.
  • Black & Beige for color selections.
  • OEM & ODM product are welcomed to contact us.
  • D.I.Y. flat package for saving freight cost and more room.

  • Width Depth Height(mm) Height(U) Model No.
    600mm 600mm 600mm 11U CLM-2166-11
    600mm 600mm 800mm 15U CLM-2166-15
    600mm 600mm 1000mm 20U CLM-2166-20
    600mm 600mm 1200mm 24U CLM-2166-24
    600mm 600mm 1400mm 29U CLM-2166-29
    600mm 600mm 1600mm 33U CLM-2166-33
    600mm 600mm 1800mm 38U CLM-2166-38
    600mm 600mm 2000mm 42U CLM-2166-42
    600mm 600mm 2200mm 47U CLM-2166-47

    600mm 700mm 600mm 11U CLM-2167-11
    600mm 700mm 800mm 15U CLM-2167-15
    600mm 700mm 1000mm 20U CLM-2167-20
    600mm 700mm 1200mm 24U CLM-2167-24
    600mm 700mm 1400mm 29U CLM-2167-29
    600mm 700mm 1600mm 33U CLM-2167-33
    600mm 700mm 1800mm 38U CLM-2167-38
    600mm 700mm 2000mm 42U CLM-2167-42
    600mm 700mm 2200mm 47U CLM-2167-47

    600mm 800mm 600mm 11U CLM-2168-11
    600mm 800mm 800mm 15U CLM-2168-15
    600mm 800mm 1000mm 20U CLM-2168-20
    600mm 800mm 1200mm 24U CLM-2168-24
    600mm 800mm 1400mm 29U CLM-2168-29
    600mm 800mm 1600mm 33U CLM-2168-33
    600mm 800mm 1800mm 38U CLM-2168-38
    600mm 800mm 2000mm 42U CLM-2168-42
    600mm 800mm 2200mm 47U CLM-2168-47

    600mm 900mm 600mm 11U CLM-2169-11
    600mm 900mm 800mm 15U CLM-2169-15
    600mm 900mm 1000mm 20U CLM-2169-20
    600mm 900mm 1200mm 24U CLM-2169-24
    600mm 900mm 1400mm 29U CLM-2169-29
    600mm 900mm 1600mm 33U CLM-2169-33
    600mm 900mm 1800mm 38U CLM-2169-38
    600mm 900mm 2000mm 42U CLM-2169-42
    600mm 900mm 2200mm 47U CLM-2169-47

    600mm 1000mm 600mm 11U CLM-21610-11
    600mm 1000mm 800mm 15U CLM-21610-15
    600mm 1000mm 1000mm 20U CLM-21610-20
    600mm 1000mm 1200mm 24U CLM-21610-24
    600mm 1000mm 1400mm 29U CLM-21610-29
    600mm 1000mm 1600mm 33U CLM-21610-33
    600mm 1000mm 1800mm 38U CLM-21610-38
    600mm 1000mm 2000mm 42U CLM-21610-42
    600mm 1000mm 2200mm 47U CLM-21610-47
