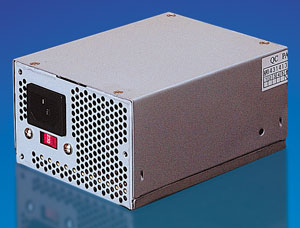

Micro ATX 145W (WIN-145)

AC Input voltage ： 115V / 230V 4/2A 60-50HZ

Max Output Power ： 145W

DC Output ：5V / 12 - 12V / 3.3V / 5VSB

For CLM-910

---

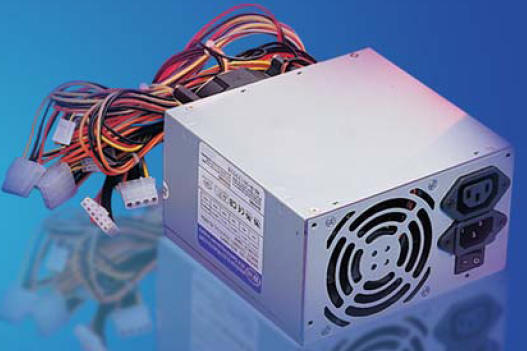

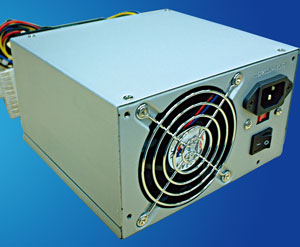

ATX 300W/400W/500W P4 Version ( 150 x 140 x 85 mm)(WIN-300PS/ 400PS/ 500PS )

AC Input voltage ： 115V / 230V

AC Input frequence ：20~60 HZ

AC Input current ：
8.5A(RMS)for 115 AC 500W
5.5A(RMS)for 230 AC 500W

Efficiency ：70% Typical AT Full Load

MTBF：50.000HRS for 20℃ Ambient

Hold up time ：17ms AT Max Load

Safety & PFC Approval

Over Load Protection： ±10%

EPS Version as request contact for more detail

For CLM-9XX Series

---

ATX 300W/400W/500W P4 Version

AC Input voltage ： 115V ~ 135 VAC or 180~265VAC

AC Input frequence ：50~60 HZ

AC Input current ：
7 A(RMS)for 115/230V AC
4 A(RMS)for 115/230V AC

Efficiency ：65% AT Full Load , nominial line

Rise time：<100 ms Max

MTBF：780.000 hrs at 80% load , 25℃ amrient

Hold up time ：17 ms AT Full Load , nominial line

Over Load Protection：10%

Safety & PFC Approval

For CLM-9XX Series

---

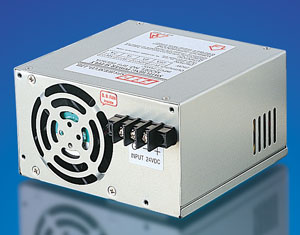

AT or ATX 250W/300W 12V/24V~48VDC/DC

Input Voltage ：18V to 36V DC

Input Current ：Max 8A at-48V DC , 16A at 24 V DC

Efficiency：Min 80%

Over Voltage Protection：5.5V to 7V at +5V

Safety Standard：UL / CSA / TUV /CE

Series：
BPS-250DD(250W-48V)
BPS-250DX(250W-48DC)

For CLM-9XX Series

EPS Version as request contact for more detail

---

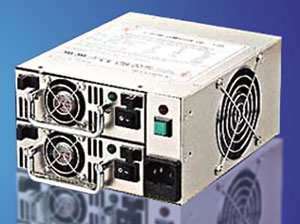

ATX 2x300W/2x400W(TC-300R8F/400R8F)

AC Input Voltage：100V~132V or 198V~264V

Efficiency：usually 65% at full load

MTBF：100.000 hrs at full load 25℃

63% Typical , at full load

Safety：NEMKO/TUV/UL/CUB/CB

Dimension：174 x 150 x 86mm(L x W x H)

For CLM-9XX Series

---

ATX 2x300W / 2x400W / Hot-Swap DUAL Redundant (TC-300R8 / 400R8)

AC Input Voltage：100V~132V or 198V~264V

Efficiency：usually 65% at full load

63% Typical at full load

MTBF：100.000 hrs at full load 25℃

Safety：NEMKO/TUV/UL/CUB/CB

Dimension：174 x 150 x 86mm(L x Wx H)

For CLM-9XX Series

---

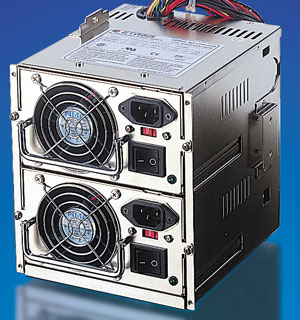

AT 2x300W Hot-Swap Dual Redundant (RPI-4300-2S / RPI-4400F-2S)

Input Voltage：90V-132V AC or 180V-264V

70% typical efficiency at full load

Safety Standard ：Meet UL / CSA / TUV / CB / CE / PFC

Series：RPI-4400F( AT 400Wx2 )

For CLM-976 ,978 ,979

Fault LED

---

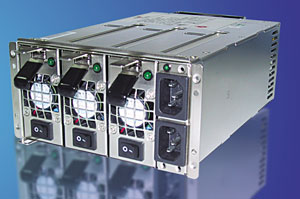

ATX 450W+150W Hot-Swap Redundant (MR3-6460P)

Input Voltage ：90V~264V AC Full Range

Input Frequency：47~63 Hz

Output Voltage ：5V/12V/5V - 12V/3.3V/5VSB

Fault LED

Efficiency：63% typical

MTBF：82623 hrs

Dimension：82 x 150 x 254 mm(H x W x D)

Safety： UL / ULC / TUV / CB

For CLM-7x0x Series

---

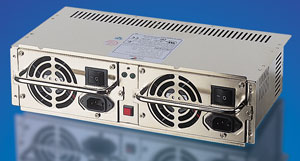

ATX 2x300W/400W Hot-Swap Dual Redundant (RAH-6300F-2S /RAH-6400F-2S )

70% typical efficiency at full load

Overload Protection：130%~150% max

Over Voltage Protection：+5V output ; 5.5V~6.5V

Over Current Protection：Short circuit

Safety ：UL / CSA / TUV / CB / PFC / CE

Series RAH-6400( 400Wx2 )

Fault LED

For CLM-986 / 878

---

ATX 600W+200W Hot-Swap Redundant (BPS-600R4)

Input Voltage ：90V-132V AC or 180V-264V

Input Frequency ：47-63Hz

70% typical efficiency at full load

Safety Standards Approved UL / CSA / TUV / CB / CE / PFC

Dimension：85.5 x 193.6 x 189mm( W x H x D )

For CLM-7501

---

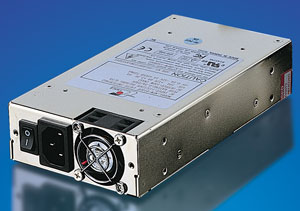

1U Micro-ATX 200W / 250W / 300W (MPW-6200/6250/6300)

Auto sensing function

Power Range：200W , 250W , 300W

Input source ：95~265V AC full range

Output：5/12/-5/-12/-3.3/5VSB

Safety：UL / UL+C / TUV / CB /PFC

MTBF：92506 hrs

40mm high speed DC fan included

For CLM-909,CLM-71xx Series

Dimension： 100 x 40.5 x 200~250 mm ( W x H x D)

---

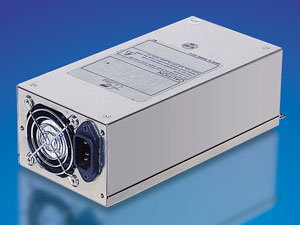

ATX 300W/400W (P2U-6300/6400P)

Input Voltage ：90V~132V or 180V~264V

Input Frequency ：47~63 Hz load

Safety Standard meet UL / CSA / TUV / CB / PFC

Series ：P2U-6400P ( ATX400W )

Dimension：W100 x H70 x D200mm

For CLM-720X , 730X Series

---

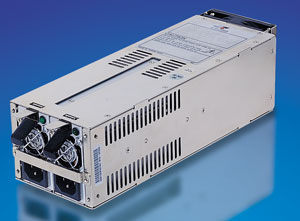

ATX 2x350W Hot-Swap Redundant(R2G-6350P)

Input Voltage ：95V~264V AC full range

Input Frequency ：47~63 Hz

Input Current ：6.0A / 3.0A for 115/230 V AC

Efficiency ：63% typical at full load

MTBF：75145 hrs

Safety：UL / CSA / TUV

Dimension： 101 x 82 x 314 mm ( W x H x D)

For CLM-720X Series

---

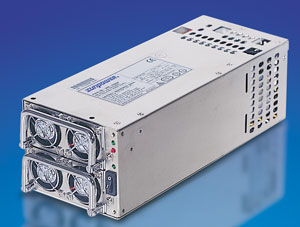

ATX 2x300W / 2x400W Hot-Swap Redundant (SPR-2326A)

Input Voltage ：90V~132V AC or 180V~264V

Input Frequency：47~63Hz

Input Current ：8.0A / 4.0A for 115/230V

70% typical efficiency at full load

Rise Time ：60 ms (Max)

Hold Up Time：20 ms (Min)

Safety Standard meet UL / CSA / TUV / CB

MTBF： 93000 hrs

Dimension：100 x 250 x 83.5 mm ( W x D x H)

For CLM-720X Series

---

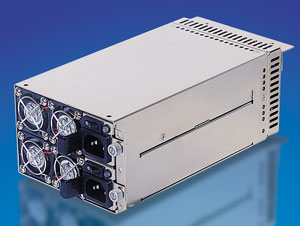

ATX 2x300W / 2x400W Hot-Swap Redundant(R2A-6300P)

Input Voltage ：90V~132V or 180V~264V

Input Frequency ：47~63 Hz Max to 285W

Input Current Protection ： 6.0/3.0 A for 115/230V AC

Efficiency ： ±63%

MTBF：103790 hrs

Rise Time ： 500 ms (Max)

Hold up time ：16 ms (Min)

Safety Standard meet UL / CSA / TUV / CB / PFC

Series ：R2A-6400P ( ATX-400W x2 )

Dimension：120 x 84 x 222 mm( W x H x D)

For CLM-730X Series

---

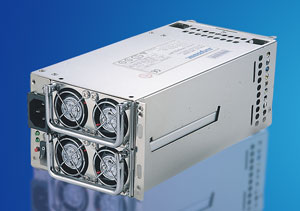

ATX 2x320W / 2x400W Hot-Swap Redundant (SPR-2323A)

Input Voltage ：90V~132V or 180V~264V

Input Frequency ：47~63 Hz

Input Current ：8.0A/4.0A for 115 230V AC

Efficiency ：70%

Rise Time ：60 ms(Max)

Hold Up Time ：20 ms (Min)

Safety Standard meet UL / CSA / TUV / CB / PFC

MTBF：93000 hrs

Dimension ：110 x 84 x 225mm (W x H x D)

For CLM-730X Seires

---
