Home > Rackmount Accessories > Rail Sections > 2 Sections Telescopic Ball-Bearing Server Rail for " Even U " (1U/ 3U/ 5U)

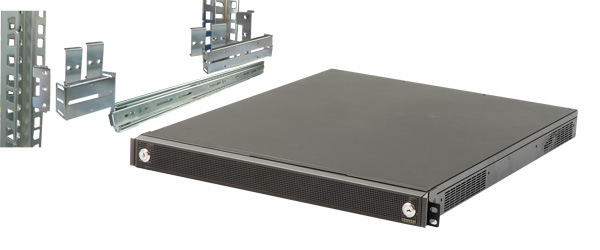

2 Sections Telescopic Ball-Bearing Server Rail for " Odd U " (1U/ 3U/ 5U)

19",rackmount,rack-mount,rack,racks,rail,accessory
Accessories:

Feature：
These server rails can be mounting in all cabinets with pairs of mounting angles through brackets for server rails & mounting onto the cabinet / rack that provides a pair of telescopic rail smooth reliable & convenience operation.

Supply Included：

  • A pair of server rail
  • 2 pair of brackets
  • Assembly parts

    • Meterial：

    Sheet Steel

    Finished:

    Zinc-plated
    CLM Part No. Cabinet Depth Rail Depth For Height
    882375-618 600mm 18" 1U/ 3U/ 5U
    7U/ 9U/ 11U
    882375-718 700mm 18" 1U/ 3U/ 5U
    7U/ 9U/ 11U
    882375-818 800mm 18" 1U/ 3U/ 5U
    7U/ 9U/ 11U
    882375-918 900mm 18" 1U/ 3U/ 5U
    7U/ 9U/ 11U
    882375-1018 1000mm 18" 1U/ 3U/ 5U
    7U/ 9U/ 11U

    882375-720 700mm 20" 1U/ 3U/ 5U
    7U/ 9U/ 11U
    882375-820 800mm 20" 1U/ 3U/ 5U
    7U/ 9U/ 11U
    882375-920 900mm 20" 1U/ 3U/ 5U
    7U/ 9U/ 11U
    882375-1020 1000mm 20" 1U/ 3U/ 5U
    7U/ 9U/ 11U

    882375-722 700mm 22" 1U/ 3U/ 5U
    7U/ 9U/ 11U
    882375-822 800mm 22" 1U/ 3U/ 5U
    7U/ 9U/ 11U
    882375-922 900mm 22" 1U/ 3U/ 5U
    7U/ 9U/ 11U
    882375-1022 1000mm 22" 1U/ 3U/ 5U
    7U/ 9U/ 11U

    882375-824 800mm 24" 1U/ 3U/ 5U
    7U/ 9U/ 11U
    882375-924 900mm 24" 1U/ 3U/ 5U
    7U/ 9U/ 11U
    882375-1024 1000mm 24" 1U/ 3U/ 5U
    7U/ 9U/ 11U

    882375-826 800mm 26" 1U/ 3U/ 5U
    7U/ 9U/ 11U
    882375-926 900mm 26" 1U/ 3U/ 5U
    7U/ 9U/ 11U
    882375-1026 1000mm 26" 1U/ 3U/ 5U
    7U/ 9U/ 11U

    882375-928 900mm 28" 1U/ 3U/ 5U
    7U/ 9U/ 11U
    882375-1028 1000mm 28" 1U/ 3U/ 5U
    7U/ 9U/ 11U
