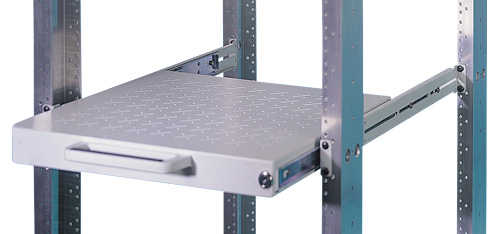

CLM-882025 Slide-in Componet Shelf (1U)

19",rackmount,rack-mount,rack,racks,drawer,accessory
Applications:

Feature:

For mounting between 2 pairs of 482.6mm(19") mounting angles , vented shelf intergrated with a pair of telescopic sliders design provides smooth touch & convenience usually put keybard. Full ovat holes plate to increase heat-dissipation efficiency whiling putting componenets on plate can use a spacer to be a stopper to stem for not dropping down or totter components.

Loading capacity:

25 kgs surface

Supply Included:

  • CLM-612083-xx vented plate
  • 1 pair of telescopic slide rails , CLM-882126-xx
  • 1 pair of rail brackets in rear , CLM-612097-xx
  • 1 CLM-612105-xxx right bracket / 1 CLM-612106-xxx left bracket
  • Meterial:

    Sheet Steel

    Finished:

    Powder coating in color RAL 7035 or RAL 9011
    CLM Part No. Width Depth
    882025-06 19" 600mm
    882025-08 19" 800mm
