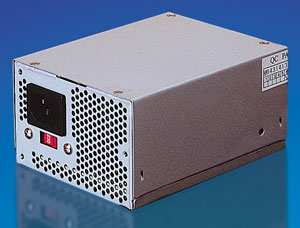

Micro ATX 145W
(WIN-145)
  • AC 輸入電壓 : 115V / 230V 4/2A 60-50HZ
  • 最大輸出功率 : 145W
  • DC 輸出 :5V / 12 - 12V / 3.3V / 5VSB
  • For CLM-910

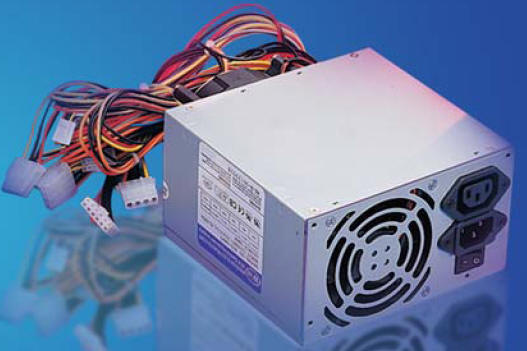

ATX 300W/400W/500W P4 Version ( 150 x 140 x 85 mm)(WIN-300PS/ 400PS/ 500PS )
  • AC 輸入電壓 : 115V / 230V
  • AC 輸入電壓頻率 :20~60 HZ
  • AC 輸入電流 :
    8.5A(RMS)for 115 AC 500W
    5.5A(RMS)for 230 AC 500W
  • 轉換功率 :70% Typical AT Full Load
  • MTBF:50.000HRS for 20℃ Ambient
  • Hold up time :17ms AT Max Load
  • Safety & PFC Approval
  • Over Load Protection: ±10%
  • EPS Version as request contact for more detail
  • For CLM-9XX Series

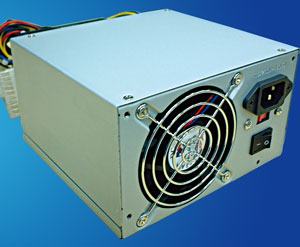

ATX 300W/400W/500W P4 Version
(WIN-500)
  • AC 輸入電壓: 115V ~ 135 VAC or 180~265VAC
  • AC 輸入電壓頻率 :50~60 HZ
  • AC 輸入電流 :
    7 A(RMS)for 115/230V AC
    4 A(RMS)for 115/230V AC
  • 轉換功率 :65% AT Full Load , nominial line
  • Rise time:<100 ms Max
  • MTBF:780.000 hrs at 80% load , 25℃ amrient
  • Hold up time :17 ms AT Full Load , nominial line
  • Over Load Protection:10%
  • Safety & PFC Approval
  • For CLM-9XX Series

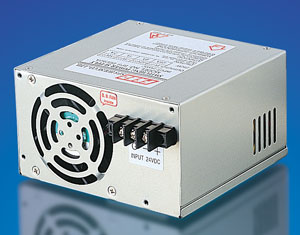

AT or ATX 250W/300W 12V/24V~48VDC/DC
(CWT-250D12/24-48VDC)
  • 輸入電壓:18V to 36V DC
  • 輸入電流 :Max 8A at-48V DC , 16A at 24 V DC
  • 轉換功率:Min 80%
  • Over Voltage Protection:5.5V to 7V at +5V
  • Safety Standard:UL / CSA / TUV /CE
  • Series:
    BPS-250DD(250W-48V)
    BPS-250DX(250W-48DC)
  • For CLM-9XX Series
  • EPS Version as request contact for more detail

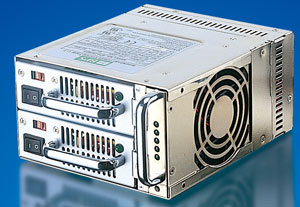

ATX 2x300W/2x400W(TC-300R8F/400R8F)
  • AC 輸入電壓:100V~132V or 198V~264V
  • 轉換功率:usually 65% at full load
  • MTBF:100.000 hrs at full load 25℃
  • 63% Typical , at full load
  • Safety:NEMKO/TUV/UL/CUB/CB
  • Dimension:174 x 150 x 86mm(L x W x H)
  • For CLM-9XX Series

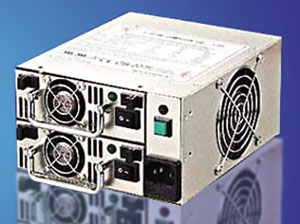

ATX 2x300W / 2x400W / Hot-Swap DUAL Redundant (TC-300R8 / 400R8)
  • AC 輸入電壓:100V~132V or 198V~264V
  • 轉換功率:usually 65% at full load
  • 63% Typical at full load
  • MTBF:100.000 hrs at full load 25℃
  • Safety:NEMKO/TUV/UL/CUB/CB
  • Dimension:174 x 150 x 86mm(L x Wx H)
  • For CLM-9XX Series

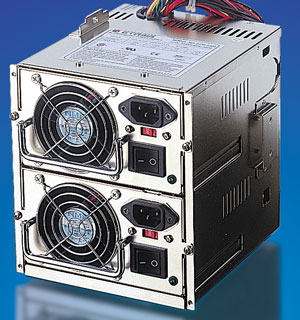

AT 2x300W Hot-Swap Dual Redundant
(RPI-4300-2S / RPI-4400F-2S)
  • 輸入電壓:90V-132V AC or 180V-264V
  • 70% typical efficiency at full load
  • Safety Standard :Meet UL / CSA / TUV / CB / CE / PFC
  • Series:RPI-4400F( AT 400Wx2 )
  • For CLM-976 ,978 ,979
  • Fault LED

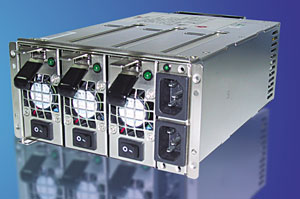

ATX 450W+150W Hot-Swap Redundant
(MR3-6460P)
  • 輸入電壓:90V~264V AC Full Range
  • 輸入電壓頻率:47~63 Hz
  • 輸出電壓 :5V/12V/5V - 12V/3.3V/5VSB
  • Fault LED
  • Efficiency:63% typical
  • MTBF:82623 hrs
  • Dimension:82 x 150 x 254 mm(H x W x D)
  • Safety: UL / ULC / TUV / CB
  • For CLM-7x0x Series

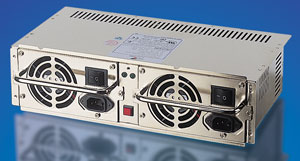

ATX 2x300W/400W Hot-Swap Dual Redundant
(RAH-6300F-2S /RAH-6400F-2S )
  • 70% typical efficiency at full load
  • Overload Protection:130%~150% max
  • Over Voltage Protection:+5V output ; 5.5V~6.5V
  • Over Current Protection:Short circuit
  • Safety :UL / CSA / TUV / CB / PFC / CE
  • Series RAH-6400( 400Wx2 )
  • Fault LED
  • For CLM-986 , 878

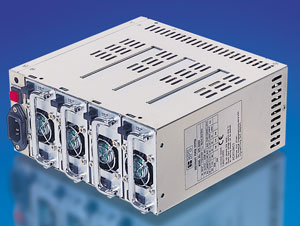

ATX 600W+200W Hot-Swap Redundant
(BPS-600R4 )
  • 輸入電壓:90V-132V AC or 180V-264V
  • 輸入電壓頻率:47-63Hz
  • 70% typical efficiency at full load
  • Safety Standards Approved UL / CSA / TUV / CB / CE / PFC
  • Dimension:85.5 x 193.6 x 189mm( W x H x D )
  • For CLM-7501

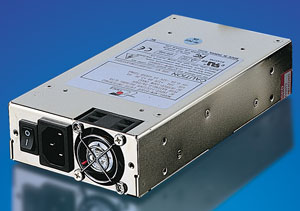

1U Micro-ATX 200W / 250W / 300W
(MPW-6200/6250/6300)

  • Auto sensing function
  • 功率範圍:200W , 250W , 300W
  • 輸入電壓範圍 :95~265V AC full range
  • 輸出電壓範圍:5/12/-5/-12/-3.3/5VSB
  • Safety:UL / UL+C / TUV / CB /PFC
  • MTBF:92506 hrs
  • 40mm high speed DC fan included
  • For CLM-909,CLM-71xx Series
  • 規格: 100 x 40.5 x 200~250 mm ( W x H x D)

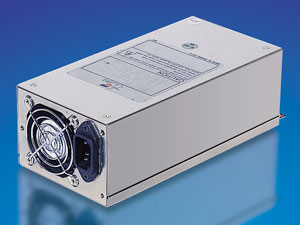

ATX 300W/400W
(P2U-6300/6400P)
  • 輸入電壓:90V~132V or 180V~264V
  • 輸入電壓頻率:47~63 Hz load
  • Safety Standard meet UL / CSA / TUV / CB / PFC
  • 型號 :P2U-6400P ( ATX400W )
  • 規格:W100 x H70 x D200mm
  • For CLM-720X , 730X Series

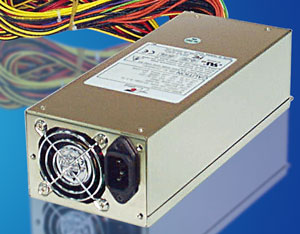

ATX 300W/400W
(P2G-6300/6400P)
  • 輸入電壓:90V~265V AC Full Range
  • 輸入電壓頻率:47~63 Hz
  • 輸入電流 :7.0A / 3.5A for 115/230 V AC
  • Hold Up Time :16.7 ms /115V AC or 20 ms /230V AC
  • Rise Time :100ms Max
  • Safety:UL / CUL / TUV
  • Air flow :8 CFM min
  • 規格: 100 x 70 x 240 mm ( W x H x D)
  • For CLM-720X Series

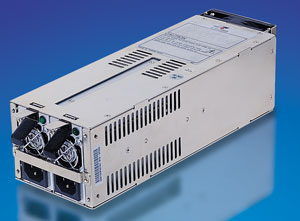

ATX 2x350W Hot-Swap Redundant
(R2G-6350P)
  • 輸入電壓:95V~264V AC full range
  • 輸入電壓頻率:47~63 Hz
  • 輸入電流 :6.0A / 3.0A for 115/230 V AC
  • Efficiency :63% typical at full load
  • MTBF:75145 hrs
  • Safety:UL / CSA / TUV
  • 規格: 101 x 82 x 314 mm ( W x H x D)
  • For CLM-720X Series

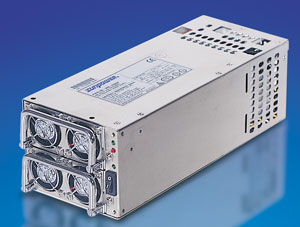

ATX 2x300W / 2x400W Hot-Swap Redundant
(SPR-2326A)
  • 輸入電壓:90V~132V AC or 180V~264V
  • 輸入電壓頻率:47~63Hz
  • 輸入電流 :8.0A / 4.0A for 115/230V
  • 70% typical efficiency at full load
  • Rise Time :60 ms (Max)
  • Hold Up Time:20 ms (Min)
  • Safety Standard meet UL / CSA / TUV / CB
  • MTBF: 93000 hrs
  • 規格:100 x 250 x 83.5 mm ( W x D x H)
  • For CLM-720X Series

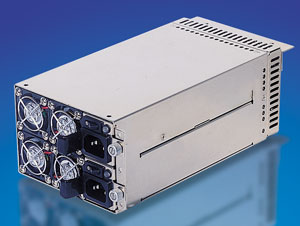

ATX 2x300W / 2x400W Hot-Swap Redundant
(R2A-6300P)
  • 輸入電壓:90V~132V or 180V~264V
  • 輸入電壓頻率:47~63 Hz Max to 285W
  • 輸入電流保護 : 6.0/3.0 A for 115/230V AC
  • 轉換功率 : ±63%
  • MTBF:103790 hrs
  • Rise Time : 500 ms (Max)
  • Hold up time :16 ms (Min)
  • Safety Standard meet UL / CSA / TUV / CB / PFC
  • Series :R2A-6400P ( ATX-400W x2 )
  • 規格:120 x 84 x 222 mm( W x H x D)
  • For CLM-730X Series

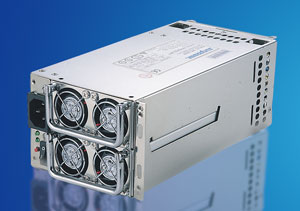

ATX 2x320W / 2x400W Hot-Swap Redundant
(SPR-2323A)
  • 輸入電壓:90V~132V or 180V~264V
  • 輸入電壓頻率:47~63 Hz
  • 輸入電流 :8.0A/4.0A for 115 230V AC
  • 轉換功率 :70%
  • Rise Time :60 ms(Max)
  • Hold Up Time :20 ms (Min)
  • Safety Standard meet UL / CSA / TUV / CB / PFC
  • MTBF:93000 hrs
  • 規格 :110 x 84 x 225mm (W x H x D)
  • For CLM-730X Seires
