Home > Rackmount IPC Chassis > Wallmount IPC Chassis > CLM-908MA/S

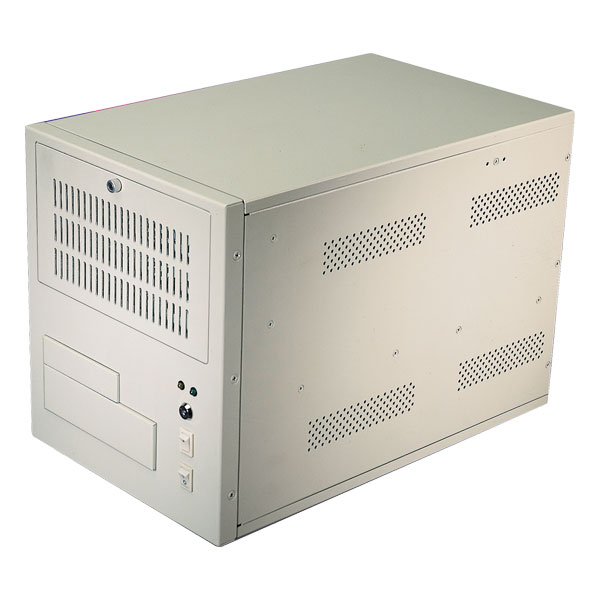

CLM-908MA (Compact/ Wallmount IPC Chassis for Micro-ATX M/B )
CLM-908S (Compact/ Wallmount IPC Chassis for 8 slots backplanes/ PICMG)

Compact rackmount chassis/ PICMG x8 slots
see more:
Compact rackmount chassis/ PICMG x8 slots Compact rackmount chassis/ PICMG x8 slots with the open front Compact rackmount chassis/ PICMG x8 slots with the open roof the drawing of Compact rackmount chassis/ PICMG x8 slots


Feature:

  • The most cost-effecitve 8 slots Compact IIPC chassis
  • Support Max to PS2/ATX Type 150W~400W
  • Easy to install one 5.25" CD-ROM, one 3.25" FDD bay and one 3.5" SATA HDD
  • Easy to replace the fan

    • Specifications

    Specifications：(Meets F.C.C.Class A & CE & RoHS)
    Complant Board

    CLM-908MA：For Micro-ATX M/B
    CLM-908S：For 8 Slots Backplane / Full-size CPU Card

    Power Supply PS2/ATX Type 150W~400W
    Fans 2* 92 x 92 mm Fan
    Front panel Lockable air-filter door (Washable)
    Drive Bays 1 x 3.5" HDD
    1 x 3.5" FDD
    1 x 5.25" CD-ROM
    Blanking Kits 1 x 9 PINS & 3 x 25 PINS blanking kit for printer
    Switches Power ON/OFF , Reset Switch ON
    LEDs H.D.D. LED
    Power LED
    Vibrations For HDD : 4 Sets Against Vibrations , patent pended
    For Cards : 360 Hold-down Bar for protecting cards away a board , paten pended
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Dimension MM： 250 x 415 x 285 MM(WxDxH)
    Shipping Dimension 1PC/CTN/1.5 CUFT
    Weight N.W.: 7.5 KGS
    G.W.: 9.0 KGS
