Home > Rackmount IPC Chassis > Wallmount IPC Chassis > CLM-904S

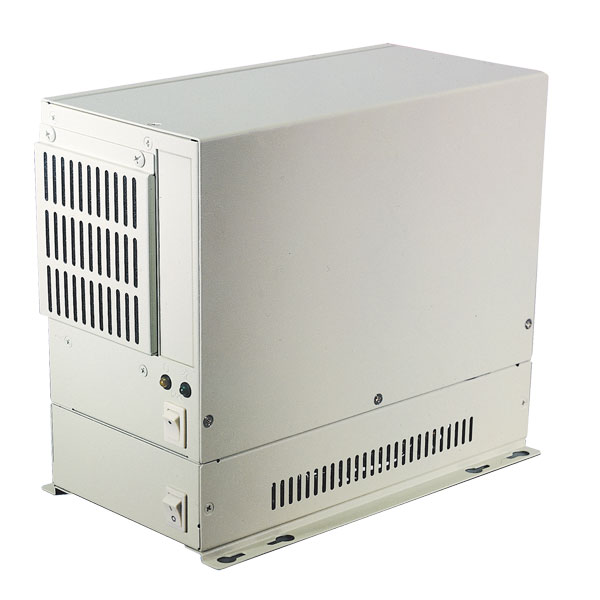

CLM-904S (Compact/ Wallmount IPC Chassis for 4 slots backplanes/ PICMG)

Compact rackmount chassis/ PICMG x4 slots
see more:
Compact rackmount chassis/ PICMG x4 slots Compact rackmount chassis/ PICMG x4 slots with the open roof the drawing of Compact rackmount chassis/ PICMG x4 slots


Feature:

  • The most cost-effecitve 4 slots Compact IIPC chassis
  • Support Max to 65/120W AT Universal Power Supply
  • Easy to install one 3.25" FDD bay and one 3.5" SATA HDD
  • Easy to replace the fan

  • Specifications

    Specifications:(Meets F.C.C.Class A & CE & RoHS)
    Complant Board

    CLM-904S:For 3 or 4 Slots Backplane / Half size CPU Card

    Power Supply AT 65W/120W Universal
    Fans 1* 8 x 8 (CM) Fan / 1* 4 x 4 (CM) Fan
    Front panel Lockable air-filter door (Washable)
    Drive Bays 1 x 2.5" HDD or 1 x3.5" HDD
    1 x 3.5" FDD
    Blanking Kits 2 x 9 PINS & 1 x 25 PINS blanking kit for printer
    Switches Power ON/OFF , Reset Switch ON
    LEDs H.D.D. LED
    Power LED
    Material SPEG(1.2mm)
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Dimension MM:120 x 250 x 210 (WxDxH)
    Shipping Dimension 1PC/CTN/0.7 CUFT
    Weight N.W.: 2.5 KGS
    G.W.: 3 KGS
