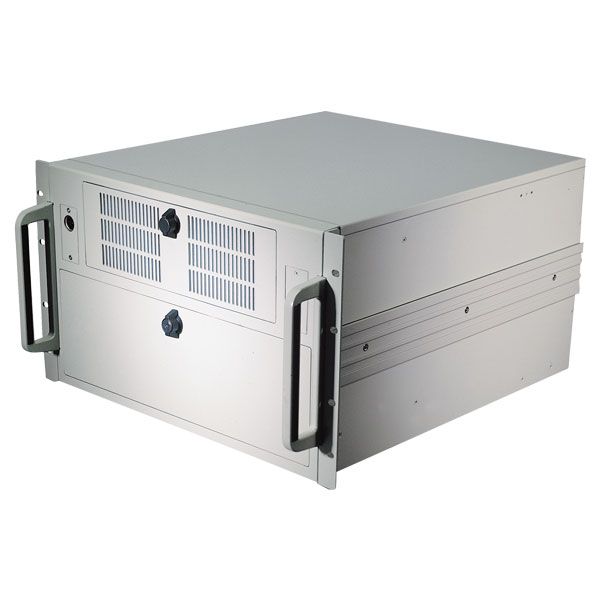

CLM-986A (6U IPC Chassis for E-ATX serverbaord)
CLM-986S (6U IPC Chassis for 20 slots backplanes/ PICMG)

6U rackmount chassis
see more


  • The unique 6U Rackmount IPC long chassis
  • Three front fans provide a good ventilation function
  • Support Redundant Power Supply
  • Support E-ATX serverboards or 20 slots backplanes with 10 long cards
  • Easy to install six 5.25" bays, one 3.25" FDD bay or SATA HDD
  • Easy to replace the fan
  • Patented 360 degree vibrator supporter
  • Designed to overcome the environmental damages, such as vibration, high temperature, shock

  • Pend No. Taiwan 0190252 , 0168278
    Germany 20104717.9
    Specifications:(Meets F.C.C.Class A & CE & RoHS)
    Motherboard CLM-986A:ATX M/B Extended Max to 12"x13"
    CLM-986S:20 Slots PCI/ISA, backplane for 20 Long Cards
    Power Supply PS2 AT/ATX
    Mini & Dual Redundant
    Mini Redundant 300W~500W AT/ATX
    Fans 3 pcs x 92 x 92x25(cm)
    Front panel Washable Air-filter
    Lockable Front doors
    Removable Device Bay cage
    Drive Bays 4 x5.25" in Front,
    2x5.25" in Rear,
    2 x3.5" FDD
    Clamp An Extruded Aluminum round shaft Bar fixied 3 size of adjustable pressing clamps, patent pended
    Side Part A pair of slide rail decorations
    Material SPEG
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Dimension Inch:19"x20"x10.5"(WxDxH)
    Shipping Dimension 1PC/CTN/ 5.0 CUFT
    Weight N.W.: 18.0 KGS
    G.W.: 20.5 KGS
