CLM-977A (5U IPC Chassis for ATX serverbaord)
CLM-977S (5U IPC Chassis for 14 slots backplanes/ PICMG)

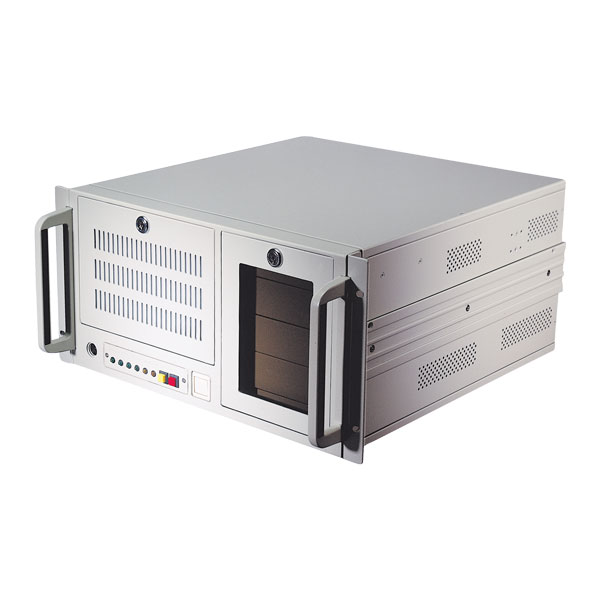

5U rackmount IPC chassis / server case with effective ventilation function
see more:
5U rackmount IPC chassis / server case with effective ventilation function 5U rackmount IPC chassis / server case with effective ventilation function and the open cover the drawing of 5U rackmount IPC chassis / server case with effective ventilation function

Feature:

  • The most standard 5U Rackmount IPC long chassis
  • Two front fan provides good ventilation function
  • Support PS2 ATX Power Supply or Mini-Redundant Power Supply
  • Support ATX serverboards or 14 slots backplanes with 10 long cards
  • Easy to install four 5.25" bays, one 3.25" FDD bay or SATA HDD
  • Easy to replace the fan
  • Patented 360 degree vibrator supporter
  • Designed to overcome the environmental damages, such as vibration, high temperature, shock

    • Pended No. Taiwan 0314216 , 0168278
    Germany 2014717.9
    Specifications：(Meets F.C.C.Class A & CE & RoHS)
    Motherboard CLM-977A：ATX M/B 9.6"x12"
    CLM-977S：14 Slots PCI/ISA Backplane for 12 Long Cards
    Power Supply

    PS2 AT/ATX
    Mini Redundant EPS Version 24 PINS+ 8PINS connector as request

    Fans 2 pcs 120 x 120x25(mm)
    Front panel Washable Air-filter
    Lockable Front door
    Removable Device Bay cage
    Drive Bays 4 x5.25"
    1x3.5" HDD
    Vibrator 6 Sets against vibrator , patent pended
    Clamp An Extruded Aluminum round shaft Bar fixied 3 size of adjustable pressing clamps, patent pended
    Side Part A pair of slide rail decorations
    Material SPEG
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Dimension Inch： 19"x18"x8.75"(WxDxH)
    Shipping Dimension 1PC/CTN/ 4.5 CUFT
    Weight N.W.: 17.5 KGS
    G.W.: 20.0 KGS
