Home > Rackmount IPC Chassis > 4U IPC Chassis > CLM-975A/S

CLM-975A (4U IPC Chassis for E-ATX serverbaord)
CLM-975S (4U IPC Chassis for 14 slots backplanes/ PICMG)

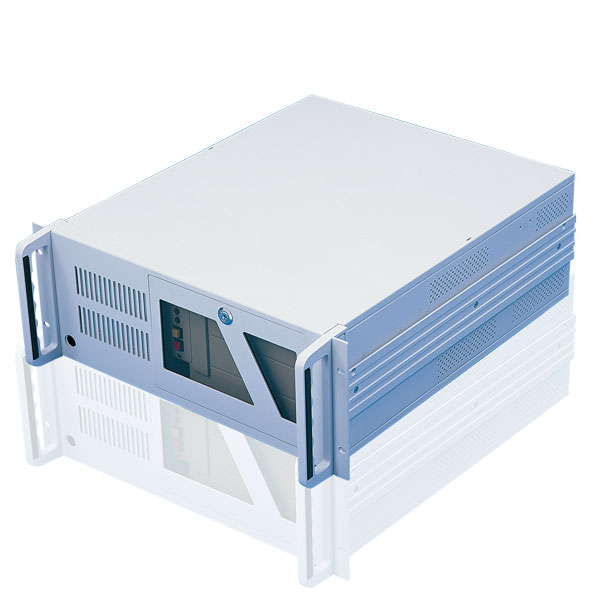

4U IPC Chassis with the close front panel
see more:
4U IPC Chassis with the close front panel 4U IPC Chassis with the close front panel in the front of side 4U IPC Chassis with the open front panel in the front of side 4U IPC Chassis with the open cover in the front of side 4U IPC Chassis in the rear of side

Feature:

  • The most standard 4U Rackmount IPC long chassis
  • Support PS2 ATX Power Supply or Mini-Redundant Power Supply
  • Support E-ATX serverboards or 14 slots backplanes with 10 long cards
  • Easy to install three 5.25" bays, one 3.25" FDD bay and two 3.5" SATA HDD
  • Easy to replace the fan
  • Patented 360 degree vibrator supporter
  • Designed to overcome the environmental damages, such as vibration, high temperature, shock

    • Pend No. Taiwan 0190252 , 0314216 , 0168278
    Germany 20104717.9
    US 6,409,518 B1
    China 01208311.9 , 498979
    Specifications：(Meets F.C.C.Class A & CE & RoHS)
    Motherboard CLM-975A： For ATX M/B Extended max to 12"x13"
    CLM-975S：14 Slots PCI/ISA Backplane 10 Long Cards
    Power Supply PS2 AT/ATX
    Mini Redundant
    Fans 1 pc 12 x 12 x 2.5 (cm)
    Front panel Removable Device Bay cage
    Washable Air-filter
    Lockable Front door
    Drive Bays 3 x5.25" CD-ROM
    1 x3.5" FDD
    2 x3.5" HDD
    2 USB Ports(Optional)
    Vibrator 4 sets against vibrators , patent pended
    Clamp An Extruded Aluminum round shaft Bar fixied 3 size of adjustable pressing clamps, patent pended
    Side Part A pair of slide rail decorations (option)
    Material SPEG
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Dimension Inch： 19"x20"x7"(WxDxH)
    Shipping Dimension 1 PC/CTN/3.81 CUFT
    595*650*300mm
    Weight N.W.: 15 KGS
    G.W.: 17.5 KGS
