CLM-973A (4U IPC Chassis for E-ATX serverbaord)
CLM-973S (4U IPC Chassis for 14 slots backplanes/ PICMG)

4U Rackmount IPC Chassis with good-effective ventilation function
see more:

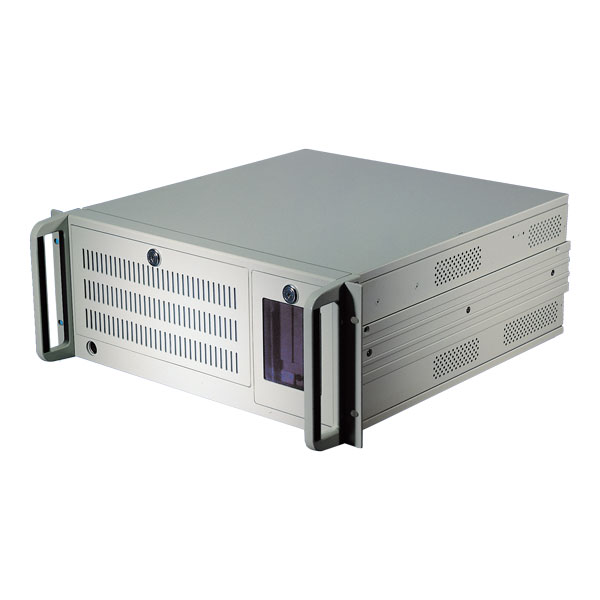

4U Rackmount IPC Chassis with good-effective ventilation function 4U Rackmount IPC Chassis with the open cover the drawing of 4U Rackmount IPC Chassis

Feature:

  • The most standard 4U Rackmount IPC chassis
  • Two front fan provides good ventilation function
  • Support PS2 ATX Power Supply or Mini-Redundant Power Supply
  • Support E-ATX serverboards or 14 slots backplanes with 10 long cards
  • Easy to install one 5.25" bays, one 3.25" FDD bay and one 3.5" SATA HDD
  • Easy to replace the fan
  • Patented 360 degree vibrator supporter
  • Designed to overcome the environmental damages, such as vibration, high temperature, shock

  • Pend No. Taiwan 0190252 , 0314216 , 0168278
    Germany 20104717.9
    US 6,409,518 B1
    China 01208311.9 , 498979
    Specifications:(Meets F.C.C.Class A & CE & RoHS)
    Motherboard CLM-973A:ATX M/B Extended Max to 12"x13"
    CLM-973S:14 Slots Backplane 14 Long Cards
    Power Supply PS2 AT/ATX
    Fans 2 pcs x 12 x 12 x 2.5 (cm)
    Front panel Removable Device Bay cage
    Washable Air-filter
    Lockable Front door
    Drive Bays 1 x 5.25'' FDD
    1 x 3.5" FDD
    1 x 3.5" HDD
    Vibrator 4 sets against vibrators , patent pended
    Clamp An Extruded Aluminum round shaft Bar fixied 3 size of adjustable pressing clamps, patent pended
    Side Part A pair of slide rail decorations (option)
    Material SPEG
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Dimension Inch: 19"x18"x7"(WxDxH)
    Shipping Dimension 1 PC/CTN/3.7 CUFT
    Weight N.W.: 14.5 KGS
    G.W.: 17.0 KGS
