CLM-971A (4U IPC Chassis front I/O output for E-ATX serverbaord)

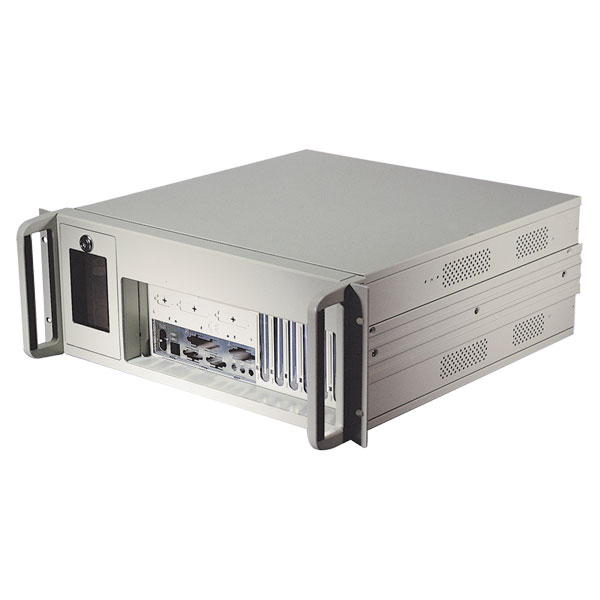

4U Front I/O rackmount IPC chassis

see more
4U Front I/O rackmount IPC chassis 4U Front I/O rackmount IPC chassis with the open cover the drawing of 4U Front I/O rackmount IPC chassis


  • The Front I/O output 4U Rackmount IPC chassis
  • Support PS2 ATX Power Supply
  • Support Max to EATX serverboards server-grade motherboard
  • Easy to install one 5.25" bay, one 3.25" FDD bay and one 3.5" SATA HDD
  • Easy to replace the fan
  • Patented 360 degree vibrator supporter
  • Designed to overcome the environmental damages, such as vibration, high temperature, shock
  • Pend No. Taiwan 0190252 , 0314216 , 0168278
    Germany 20104717.9
    US 6,409,518 B1
    China 01208311.9 , 498979
    Specifications:(Meets F.C.C.Class A & CE & RoHS)
    Motherboard Max to E-ATX 12"x 13" server-grade motherboard
    Power Supply PS2 ATX 200W~400W
    Fans 1 pcs 12 x 12 x 2.5 (cm)
    Front panel Removable Device Bay cage
    Washable Air-filter
    Lockable Front door
    Drive Bays 1x 5.25" CD-ROM
    1 x3.5" FDD
    1x 3.5" HDD
    Clamp An Extruded Aluminum round shaft Bar fixied 3 size of adjustable pressing clamps, patent pended
    Side Part A pair of slide rail decorations(Optional)
    Material SPEG
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Dimension Inch: 19"x18"x7"(WxDxH)
    Shipping Dimension 1 PC /CTN/3.7 CUFT
    Weight N.W.: 14.5 KGS
    G.W.: 17 KGS
