CLM-970A (4U IPC Chassis for ATX serverbaord)
CLM-970S (4U IPC Chassis for 14 slots backplanes/ PICMG)

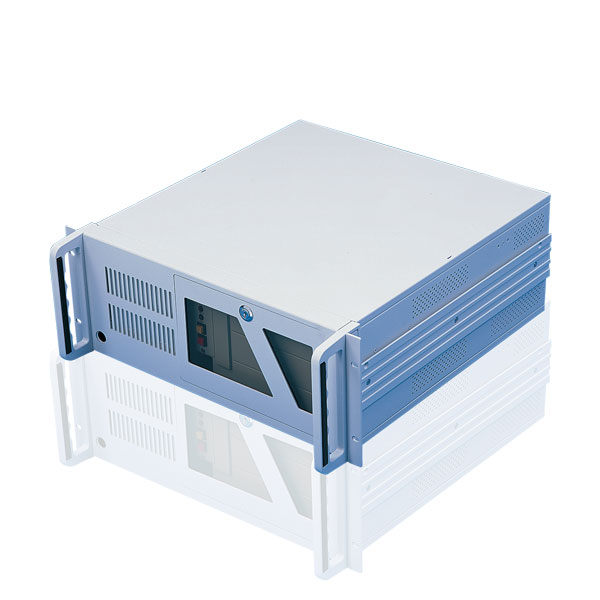

4U IPC Chassis with the close front panel
see more
4U IPC Chassis with the close front panel 4U IPC Chassis with the close front panel 4U IPC Chassis with the open front panel 4U IPC Chassis with the open cover 4U IPC Chassis for 14 slots PICMG board

Feature:

  • The most standard 4U Rackmount IPC chassis
  • Support PS2 ATX Power Supply or Mini-Redundant Power Supply
  • Support ATX serverboards or 14 slots backplanes with 10 long cards
  • Easy to install three 5.25" bays, one 3.25" FDD bay and two 3.5" SATA HDD
  • Easy to replace the fan
  • Patented 360 degree vibrator supporter
  • Designed to overcome the environmental damages, such as vibration, high temperature, shock

  • Pend No. Taiwan 0190252 , 0314216 , 0168278
    Germany 20104717.9
    US 6,409,518 B1
    China 01208311.9 , 498979
    Specifications:(Meets F.C.C.Class A & CE & RoHS)
    Motherboard CLM-970A:ATX M/B 9.6"x12"
    CLM-970S:14 Slots PCI/ISA Backplane 10 Long Cards
    Power Supply PS2 AT/ATX
    Mini Redundant
    Fans 1 pc 12 x 12 x 2.5 (cm)
    Front panel Removable Device Bay cage
    Washable Air-filter
    Lockable Front door
    Drive Bays 3 x5.25" CD-ROM
    1 x3.5" FDD
    2x3.5" HDD
    2 USB Ports(Optional)
    Vibrator 4 sets against vibrators , patent pended
    Clamp An Extruded Aluminum round shaft Bar fixied 3 size of adjustable pressing clamps, patent pended
    Side Part A pair of slide rail decorations (option)
    Material SPEG
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Dimension Inch:19"x18"x7" (WxDxH)
    Shipping Dimension 1 PC/CTN/3.7 CUFT
    Weight N.W.: 14.5 KGS
    G.W.: 17 KGS
