Home > Rackmount IPC Chassis > 4U IPC Chassis > CLM-938A/S

CLM-938A (4U IPC Chassis for E-ATX serverboard)
CLM-938A (4U IPC Chassis for 14 slots backplanes/ PICMG)

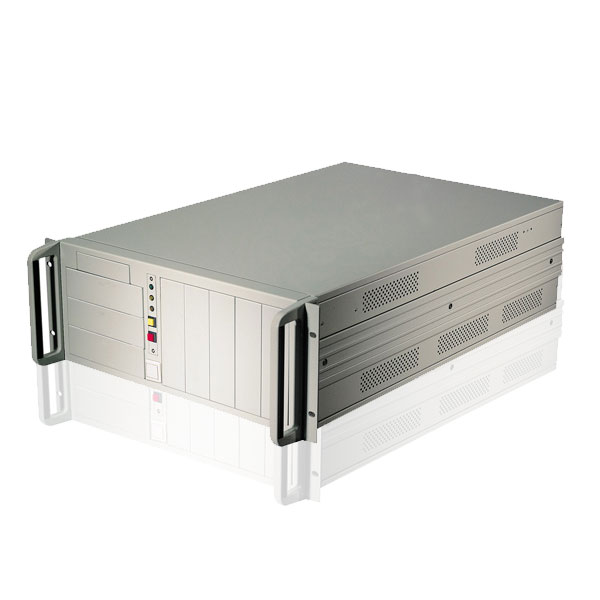

4U hot-swap rackmount storage chassis
see more:
4U hot-swap rackmount storage chassis 4U hot-swap rackmount storage chassis with the open cover 3 to 4 hot-swap device for Rackmount IPC Chassis 3 to 5 hot-swap SATA Hard disk Device for Rackmount IPC Chassis


Feature:

  • The most cost-effecitve 4U Rackmount Storage chassis
  • Support Max to 500W PFC PS2 ATX Power Supply
  • Easy to install eight 5.25" bays, one 3.25" FDD bay or one 3.5" SATA HDD
  • Compatibel with 3*5.25" bay to 4*3.5"" or 5*3.5" bay How-swap hard drivers (Optional)
  • Patented 360 degree vibrator supporter
  • Designed to overcome the environmental damages, such as vibration, high temperature, shock

  • Specifications:

    Pend No. Taiwan 0190252 , 0314216 , 0168278
    Germany 20104717.9
    US 6,409,518 B1
    China 01208311.9 , 498979
    Specifications:(Meets F.C.C.Class A & CE & RoHS)
    Motherboard CLM-938A: For ATX Mainboard extended to 12"x13"
    CLM-938S: For 14 Slots Backplane 14 Long Card
    Power Supply PS2 Type ATX 300W or 400W or 500W
    EPS 24 PIN + 8 PIN connector as request
    Mini Redundant
    Fans 3 pcs 12 x 12(cm)
    Front panel Removable Device Bay cage
    Drive Bays 8 x5.25" CD-ROM
    1x3.5" HDD
    Vibrator 6 sets against vibrators , patent pended
    Clamp An Extruded Aluminum round shaft Bar fixied 3 size of adjustable pressing clamps, patent pended
    Side Part A pair of slide rail decorations (option)
    Material SPEG (1.2mm)
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Dimension Inch: 19"x26"x7"(WxDxH)
    Shipping Dimension 1 PC/CTN/4.6 CUFT
    Weight N.W.: 16 KGS
    G.W.: 19 KGS
