CLM-922A (4U IPC Chassis for ATX M/B)
CLM-922S (4U IPC Chassis for 14 slots backplanes/ PICMG)

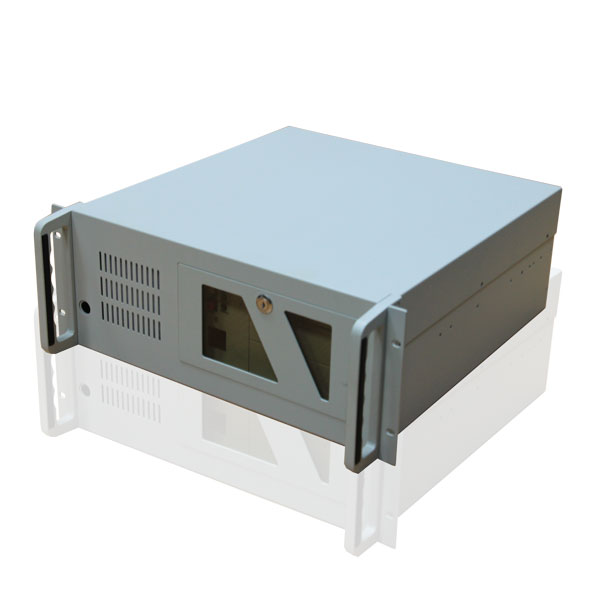

4U Rackmount IPC Chassis for ATX or PICMG
see more:
4U IPC Chassis with the close front panel 4U IPC Chassis with the open front panel 4U IPC Chassis with the open cover panel 4U IPC Chassis in the rear side 4U Rackmount IPC Chassis for 14 slots PICMG


Feature:

  • The most cost-effecitve 4U Rackmount IPC chassis
  • Support Max to 400W PFC PS2 ATX Power Supply
  • Easy to install two 5.25" bays, one 3.25" FDD bay and one 3.5" SATA HDD
  • Easy to replace the fan
  • Patented 360 degree vibrator supporter
  • Designed to overcome the environmental damages, such as vibration, high temperature, shock

  • Specifications

    Pend No. Taiwan 0190252 , 0314216 , 0168278
    Germany 20104717.9
    Specifications:(Meets F.C.C.Class A & CE & RoHS)
    Motherboard

    CLM-922A:ATX M/B 12"x9.6"
    CLM-922S:PCI/ISA 14 Slot Backplane, 9 long cards

    Power Supply PS2 AT/ATX 200-400W
    Fans 1 pcs 12 x 12 x 2.5(cm)
    Front panel Removable Device Bay cage
    Washable Air-filter
    Lockable Front door
    Drive Bays 2 x 5.25" CD-ROM
    1 x 3.5" FDD
    1 x 3.5" HDD
    2 USB Ports(Optional)
    Vibrator 4 Sets against vibrator , patent pended
    Clamp An Extruded Aluminum round shaft Bar fixied 3 size of adjustable pressing clamps, patent pended.
    Side Part A pair of slide rail decorations (option)
    Material SPEG(1.2mm)
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Dimension Inch:19"x18"x7"(WxDxH)
    Shipping Dimension 1 PC/CTN/3.7 CUFT
    (W60*D59*H33cm)
    Weight N.W.: 14.5 KGS
    G.W.: 17.0 KGS
