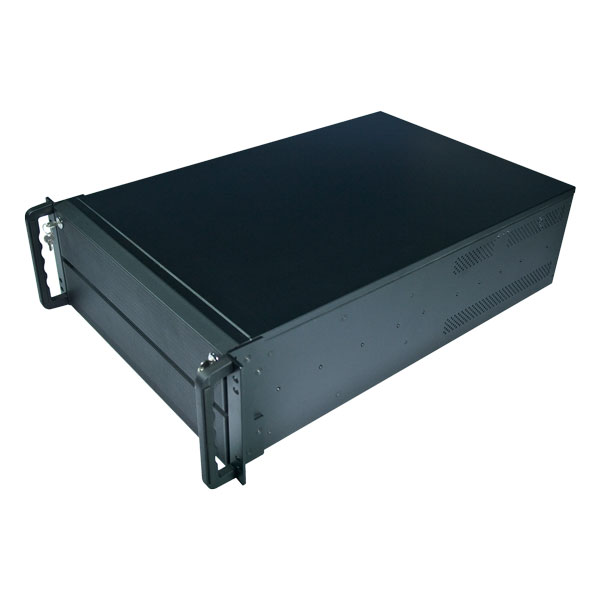

CLM-54-12AL7 (4U Storage Chassis with 6 CD-ROM Bays to set up hot-swap HDD Devices)

4U rackmount storage chassis for Hot-swap SATA Hard disks

see more
4U rackmount storage chassis for Hot-swap SATA Hard disks 4U rackmount storage chassis for Hot-swap SATA Hard disks and the open front 4U rackmount storage chassis for Hot-swap SATA Hard disks and the open cover 4U rackmount storage chassis for Hot-swap SATA Hard disks and the open cover

Feature:

  • The 4U Rackmount Storage chassis/ Server Case
  • Support PS2 ATX Power Supply
  • Support Max to E-ATX serverboards server-grade motherboard
  • Easy to install Six 5.25" bays and eleven 3.5" SATA HDDs
  • Easy to replace fans
  • Patented 360 degree vibrator supporter
  • Designed to overcome the environmental damages, such as vibration, high temperature, shock

  • Specifications:(Meets F.C.C.Class A & CE & RoHS)
    Power Supply Single ATX/PS2 Power Max 860 (Depth: 160mm) (Optional)
    Motherboard Max to 12" (W) x 13" (D) Compliant ATX/SSI EEB 3.61
    Fans Front : none
    Middle : none
    Rear : 2 x Axial (120 x 120 x 25mm)
    Indicatiors LEDs 1 x Disk status LED
    1 x Power LED
    2 x NIC LEDs
    1 x Fan Fault LED
    Switches Power Button ON/OFF
    Reset Button ON/OFF
    Drive Bays 6 x 5.25" CD-ROM
    1 x 3.5" floppy
    5 x 3.5" front Hard Disks (internal)
    6 x 3.5" rear Hard Disks (internal)
    Front USB port None
    Expansion Slot Full Size PCI & PCI Express Card
    Air-Filter None
    Material SECCESAXZ Standard (ROHS)
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Temperature 0°C(32F) ~ 50° C(122F) (Non-operation)
    Humidity 5%~95% Non-Condensing
    Dimension MM: (W)424 x (H)177 x (L)660
    INCH: (W)19" x (H)6.97" x (D)26"
    Shipping Dimension MM: (W)546 x (H)307 x (L)783
    INCH: (W)21.5" x (H)12.09" x (D)30.83"
    Weight N/A
    Product Applications Web Server
    Proxy Server
    VPN Gateway
    High-End Workstation
    Print Server
