Home > Rackmount IPC Chassis > 4U IPC Chassis > CLM-54-10AL7

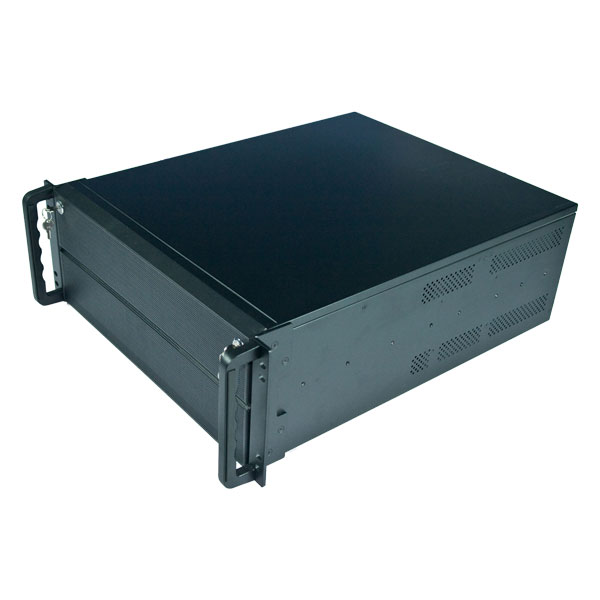

CLM-54-10AL7 (4U Storage Chassis with cooling fans for the high-speed HDDs)

4U rackmount IPC chassis/ Server, a effective ventilation for SATA Hard Disks

see more
4U rackmount IPC chassis/ Server, a effective ventilation for SATA Hard Disks 4U rackmount IPC chassis/ Server, a effective ventilation for SATA Hard Disks and the open front 4U rackmount IPC chassis/ Server, a effective ventilation for SATA Hard Disks and the open cover 4U rackmount IPC chassis/ Server, a effective ventilation for SATA Hard Disks and the open cover 4U rackmount IPC chassis/ Server, a effective ventilation for SATA Hard Disks in the rear side

Feature:

  • The 4U Rackmount Storage chassis/ Server Case
  • Support PS2 ATX Power Supply or Mini-Redundant Power Supply
  • Support Max to E-ATX serverboards server-grade motherboard
  • Easy to install Four 5.25" bays and six 3.5" SATA HDDs
  • Easy to replace fans
  • Patented 360 degree vibrator supporter
  • Designed to overcome the environmental damages, such as vibration, high temperature, shock

  • Specifications:(Meets F.C.C.Class A & CE & RoHS)
    Power Supply Single ATX/PS2 Power Max 860 (Depth: 220mm) (Optional)
    Mini Redundant Power Max 600 Watts (Depth: 220mm) (Optional)
    Motherboard Max to 12" (W) x 13" (D) Compliant ATX/SSI EEB 3.61
    Fans Front : 2 x Axial (120 x 120 x 25mm)
    Middle : none
    Rear : 1 x Axial (120 x 120 x 25mm)
    Indicatiors LEDs 2 x Disk status LED
    1 x Power LED
    2 x NIC LEDs
    1 x Fan Fault LED
    Switches Power Button ON/OFF
    Reset Button ON/OFF
    Drive Bays 4 x 5.25" CD-ROM
    6 x 3.5" Hard Disks (internal)
    Front USB port 2 USB Ports with Cable (option)
    Expansion Slot Full Size PCI & PCI Express Card
    Air-Filter Chemical filter washable
    Material SECCESAXZ Standard (ROHS)
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Temperature 0°C(32F) ~ 50° C(122F) (Non-operation)
    Humidity 5%~95% Non-Condensing
    Dimension MM: (W)424 x (H)177 x (L)533
    INCH: (W)19" x (H)6.97" x (D)21"
    Shipping Dimension MM: (W)546 x (H)307 x (L)670
    INCH: (W)21.5" x (H)12.09" x (D)26.4"
    Product Applications Web Server
    Proxy Server
    VPN Gateway
    High-End Workstation
    Print Server
