CLM-54-07AL7 (4U Storage Chassis with 8+1 HDD bays and 3 CD-ROM bays or ATX serverboards)

4U rackmount IPC chassis, 8x SATA Hard Disk bays

see more

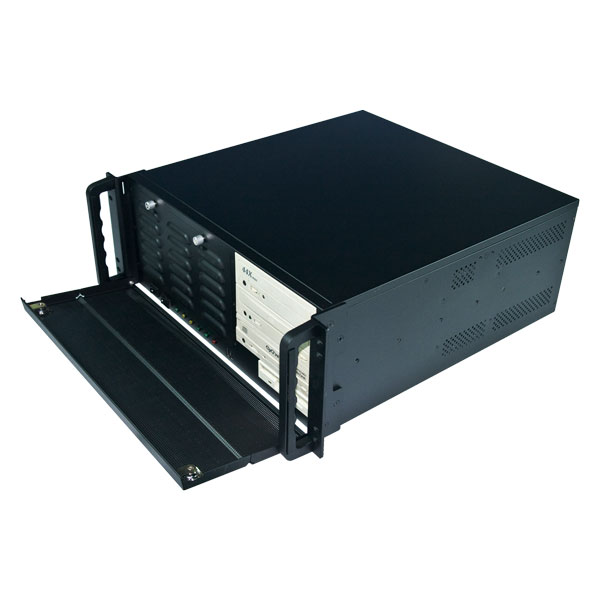

4U rackmount IPC chassis, 8x SATA Hard Disk bays 4U rackmount IPC chassis, 8x SATA Hard Disk bays with the open front panel 4U rackmount IPC chassis, 8x SATA Hard Disk bays with the open cover 4U rackmount IPC chassis, 8x SATA Hard Disk bays with the open cover 4U rackmount IPC chassis, 8x SATA Hard Disk bays in the rear side

Feature:

  • The 4U Rackmount Storage chassis/ IPC Case
  • Support PS2 ATX Power Supply or Mini-Redundant Power Supply
  • Support Max to ATX serverboards server-grade motherboard
  • Easy to install Three 5.25" bays, one 3.25" FDD bay and eight 3.5" SATA HDDs
  • Easy to replace fans
  • Patented 360 degree vibrator supporter
  • Designed to overcome the environmental damages, such as vibration, high temperature, shock

  • Specifications:(Meets F.C.C.Class A & CE & RoHS)
    Power Supply Single ATX/PS2 Power Max 860 (Depth: 185mm) (Optional)
    Mini Redundant Power Max 600 Watts (Depth: 185mm) (Optional)
    Motherboard Max to 12" (W) x 10.6" (D) Compliant ATX/SSI CEB 1.1
    Fans Front : 2 x Axial (120 x 120 x 25mm)
    Middle : none
    Rear : 1 x Axial (120 x 120 x 25mm)
    Indicatiors LEDs 1 x Disk status LED
    1 x Power LED
    2 x NIC LEDs
    1 x Fan Fault LED
    Switches Power Button ON/OFF
    Reset Button ON/OFF
    Drive Bays 3 x 5.25" CD-ROM
    1 x 3.5" Floppy
    8 x 3.5" Hard Disks (internal)
    Front USB port 2 USB Ports with Cable (option)
    Expansion Slot PCI & PCI Express Card (Max 220mm Depth)
    Air-Filter Chemical filter washable
    Material SECCESAXZ Standard (ROHS)
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Temperature 0°C(32F) ~ 50° C(122F) (Non-operation)
    Humidity 5%~95% Non-Condensing
    Dimension MM: (W)424 x (H)177 x (L)457
    INCH: (W)19" x (H)6.97" x (D)18"
    Shipping Dimension MM: (W)546 x (H)307 x (L)594
    INCH: (W)21.5" x (H)12.09" x (D)23.4"
    Product Applications Web Server
    Proxy Server
    VPN Gateway
    High-End Workstation
    Print Server
