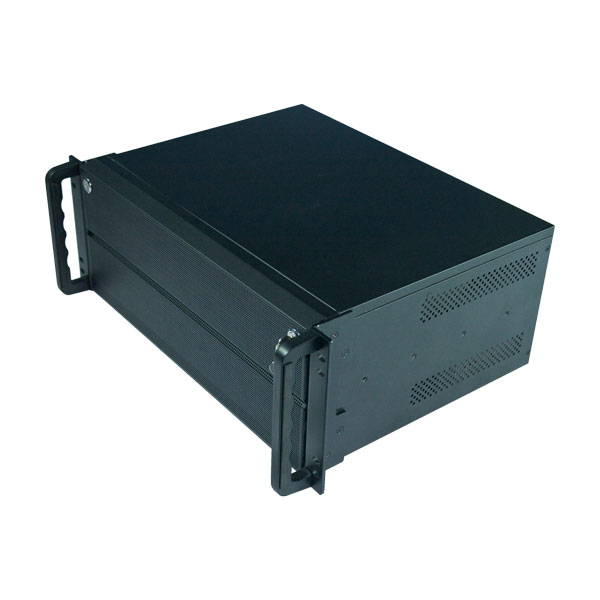

CLM-54-04MAL4 (13 inch short 4U IPC Chassis for Micro-ATX serverbaord)

the short 4U rackmount IPC chassis for ATX PSU and Micro-ATX

see more
the short 4U rackmount IPC chassis for ATX PSU and Micro-ATX the short 4U rackmount IPC chassis with the open front panel the short 4U rackmount IPC chassis with the open cover the short 4U rackmount IPC chassis with the open cover the short 4U rackmount IPC chassis in the rear side

Feature:

  • The shorter 13" 4U Rackmount IPC chassis
  • Support PS2 ATX Power Supply or Mini-Redundant Power Supply
  • Support Micro-ATX serverboards
  • Easy to install two 5.25" bays and three 3.5" SATA HDDs
  • Easy to replace the filter
  • Patented 360 degree vibrator supporter
  • Designed to overcome the environmental damages, such as vibration, high temperature, shock

  • Specifications:(Meets F.C.C.Class A & CE & RoHS)
    Power Supply Single ATX/PS2 Power Max 860 (Depth: 140mm) (Optional)
    Mini Redundant Power Max 600 Watts (Depth: 140mm) (Optional)
    Motherboard Max to 9.6" (W) x 9.6" (D) Compliant Micro ATX V1.2
    Fans Front : 2 x Axial (120 x 120 x 25mm)
    Middle : none
    Rear : 1 x Axial (120 x 120 x 25mm)
    Indicatiors LEDs 2 x Disk status LED
    1 x Power LED
    2 x NIC LEDs
    1 x Fan Fault LED
    Switches Power Button ON/OFF
    Reset Button ON/OFF
    Drive Bays 2 x 5.25" CD-ROM
    3 x 3.5" Hard Disks (internal)
    Front USB port 2 USB Ports with Cable (option)
    Expansion Slot PCI & PCI Express Card (Max 220mm Depth)
    Air-Filter Chemical filter washable
    Material SECCESAXZ Standard (ROHS)
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Temperature 0°C(32F) ~ 50° C(122F) (Non-operation)
    Humidity 5%~95% Non-Condensing
    Dimension MM: (W)424 x (H)177 x (L)330
    INCH: (W)19" x (H)6.97" x (D)13"
    Shipping Dimension MM: (W)546 x (H)307 x (L)471
    INCH: (W)21.5" x (H)12.09" x (D)18.5"
    Product Applications Web Server
    Proxy Server
    VPN Gateway
    High-End Workstation
    Print Server
