A shorter 4U Rackmount IPC Chassis/ Computer Case provides a cost-effective solution for your expense.
banner
Home > Rackmount IPC Chassis > 4U IPC Chassis > CLM-54-03AL7

CLM-54-03AL7 (short 4U IPC Chassis for ATX serverbaord)

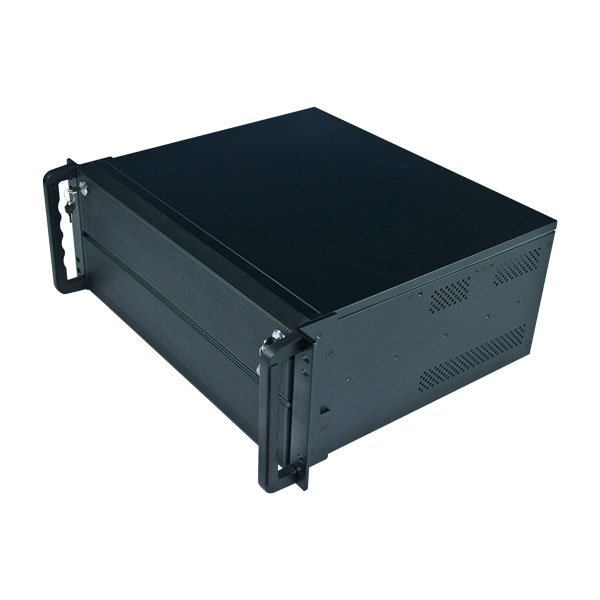

the short 4U rackmount IPC chassis

see more
the short 4U rackmount IPC chassis with the close front door the short 4U rackmount IPC chassis with the open front door the short 4U rackmount IPC chassis with the open front door the short 4U rackmount IPC chassis with the open cover the short 4U rackmount IPC chassis in the rear side

Feature:

  • The short 4U Rackmount IPC chassis
  • Support PS2 ATX Power Supply or Mini-Redundant Power Supply
  • Support ATX serverboards
  • Easy to install two 5.25" bays, one 3.25" FDD bay and five 3.5" SATA HDDs
  • Easy to replace the filter
  • Patented 360 degree vibrator supporter
  • Designed to overcome the environmental damages, such as vibration, high temperature, shock

  • Specifications:(Meets F.C.C.Class A & CE & RoHS)
    Power Supply Single ATX/PS2 Power Max 860 (Depth: 140mm) (Optional)
    Mini Redundant Power Max 600 Watts (Depth: 140mm) (Optional)
    Motherboard Max to 12" (W) x 10.6" (D) Compliant ATX/SSI CEB 1.1
    Fans Front : 2 x Axial (120 x 120 x 25mm)
    Middle : none
    Rear : 1 x Axial (120 x 120 x 25mm)
    Indicatiors LEDs 2 x Disk status LED
    1 x Power LED
    2 x NIC LEDs
    1 x Fan Fault LED
    Switches Power Button ON/OFF
    Reset Button ON/OFF
    Drive Bays 2 x 5.25" CD-ROM
    1 x 3.5" Floppy
    4 x 3.5" Hard Disks (internal)
    Front USB port 4 USB Ports with Cable (option)
    Expansion Slot PCI & PCI Express Card (Max 270mm Depth)
    Air-Filter Chemical filter washable
    Material SECCESAXZ Standard (ROHS)
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Temperature 0°C(32F) ~ 50° C(122F) (Non-operation)
    Humidity 5%~95% Non-Condensing
    Dimension MM: (W)424 x (H)177 x (L)367.5
    INCH: (W)19" x (H)6.97" x (D)14.5"
    Shipping Dimension MM: (W)546 x (H)307 x (L)506
    INCH: (W)21.5" x (H)12.09" x (D)19.9"
    Product Applications Web Server
    Proxy Server
    VPN Gateway
    High-End Workstation
    Print Server
