CLM-54-02AL7 (4U IPC Chassis for Extend ATX serverbaords)
CLM-54-02S14 (4U IPC Chassis for 14 slots PICMG boards)


4U rackmount chassis

see more

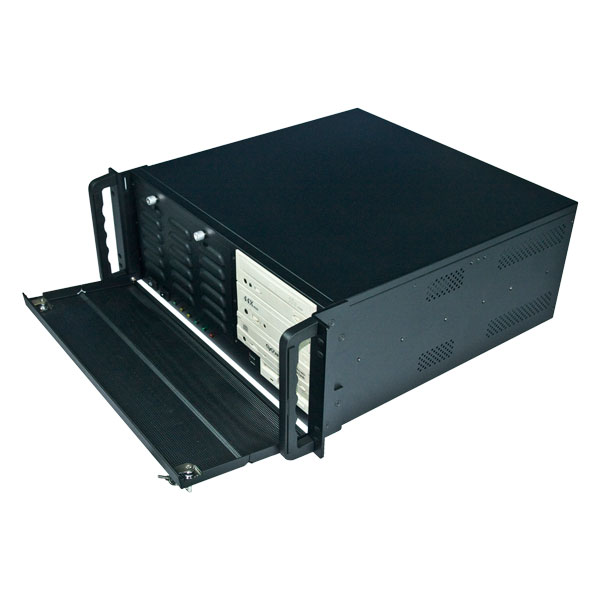

4U rackmount IPC chassis with effective ventilation function and the open front panel 4U rackmount IPC chassis with effective ventilation function and the open cover 4U rackmount IPC chassis with effective ventilation function in the rear side 4U rackmount IPC chassis for 14 slots PICMG with effective ventilation function and the open cover 4U rackmount IPC chassis for 14 slots PICMG with effective ventilation function in the rear side

Feature:

  • The short 4U Rackmount IPC chassis
  • Support PS2 ATX Power Supply or Mini-Redundant Power Supply
  • Support E-ATX serverboards or 14 slots PICMG
  • Easy to install three 5.25" bays, one 3.25" FDD bay and four 3.5" SATA HDDs
  • Easy to replace the filter
  • Patented 360 degree vibrator supporter
  • Designed to overcome the environmental damages, such as vibration, high temperature, shock

  • Specifications:(Meets F.C.C.Class A & CE & RoHS)
    Power Supply Single ATX/PS2 Power Max 860 (Depth: 185mm) (Optional)
    Mini Redundant Power Max 600 Watts (Depth: 185mm) (Optional)
    Motherboard Max to 12" (W) x 13" (D) Compliant ATX/SSI EEB 3.61
    or 14 slots PICMG
    Fans Front : 2 x Axial (120 x 120 x 25mm)
    Middle : none
    Rear : 1 x Axial (120 x 120 x 25mm)
    Indicatiors LEDs 2 x Disk status LED
    1 x Power LED
    2 x NIC LEDs
    1 x Fan Fault LED
    Switches Power Button ON/OFF
    Reset Button ON/OFF
    Drive Bays 3 x 5.25" CD-ROM
    1 x 3.5" Floppy
    4 x 3.5" Hard Disks (internal)
    Front USB port 2 USB Ports with Cable (option)
    Expansion Slot Full Size PCI & PCI Express Card
    Air-Filter Chemical filter washable
    Material SECCESAXZ Standard (ROHS)
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Temperature 0°C(32F) ~ 50° C(122F) (Non-operation)
    Humidity 5%~95% Non-Condensing
    Dimension MM: (W)424 x (H)177 x (L)431.5
    INCH: (W)19" x (H)6.97" x (D)17"
    Shipping Dimension MM: (W)546 x (H)307 x (L)569
    INCH: (W)21.5" x (H)12.09" x (D)22.4"
    Product Applications Web Server
    Proxy Server
    VPN Gateway
    High-End Workstation
    Print Server
