CLM-9232A (2U IPC Chassis for E-ATX motherboard and PS2/ATX PSU)

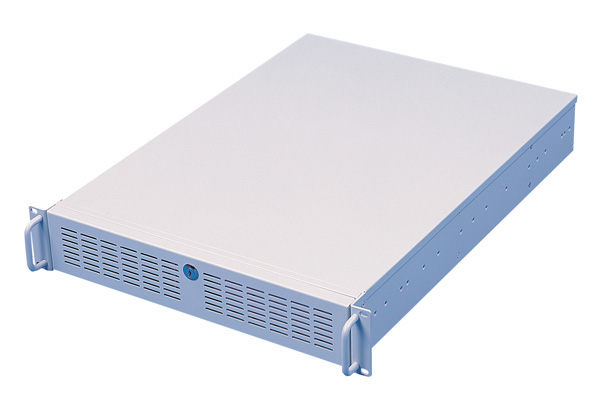

2U rackmount server chassis/ IPC Case

see more:
2U rackmount server chassis/ IPC Case 2U rackmount server chassis/ IPC Case with the open front 2U rackmount server chassis/ IPC Case with the open cover the drawing of 2U rackmount server chassis/ IPC Case

Feature:

  • The 2U Rackmount Server chassis
  • Good Ventilation Function by four fans
  • Support Max to 12"x13" ATX Serverboard
  • Easy to install one 5.25" bays, one FDD bays and three 3.5" SATA HDDs
  • Easy to replace fans

  • Patent Pended Taiwan 195808 Germany 2014717.9
    USA 09/953.269 China ZL01232530.9
    Specifications:(Meets F.C.C.Class A & CE & RoHS)
    Motherboard

    ATX 12 "x13" (#5, #6 Slot)

    Power Supply PS2 ATX (AC-IN ON Top)
    EPS 24 PINS + 8 PINS Version as request
    Fans 4 pcs x 8 x 8(cm) [2 pcs optional fans available]
    Front panel Removable Device Bay cage
    Washable Air-filter
    Lockable Front door
    Drive Bays 1 x 5.25" CD-ROM
    1 x 3.5" FDD
    3 x 3.5" HDD
    Material SPEG
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Dimension Inch: 19"x24"x3.5"(WxDxH)
    Shipping Dimension 1 PC/CTN/ 3.3 CUFT
    Weight N.W.: 11 KGS
    G.W.: 13 KGS
    Rise Card (Optional) 2 x 32 bit PCI slots in 2 layers
