CLM-916S (2U IPC Chassis for backplanes or PICMG boards)

2U IPC Chassis for PICMG boards

see more:

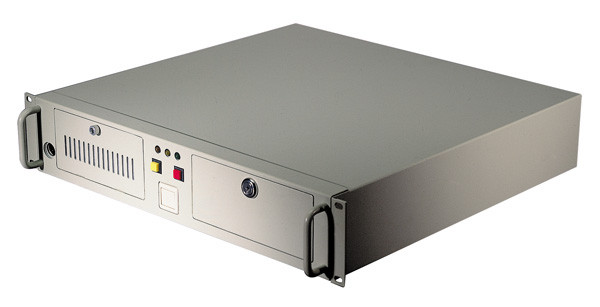

2U IPC Chassis for PICMG boards 2U IPC Chassis for PICMG boards with the open cover the drawing of 2U IPC Chassis for PICMG boards


  • The 2U Rackmount IPC chassis for backplanes or PICMG boards
  • Good Ventilation Function by two front fans
  • Support Max to Six Long Cards
  • Easy to install one 5.25" bay, one FDD bay and one 3.5" SATA HDD
  • Easy to replace fans

  • Specifications:(Meets F.C.C.Class A & CE & RoHS)

    5 x Long Cards
    (3 x PCI / 1x ISA / 2x PICMG on two sides)

    Power Supply PS2 AT 200-400W
    Fans 2 pcs x 6 x 6 CM
    Front panel Removable Device Bay cage
    Washable Air-filter
    Lockable Front door
    Drive Bays 1 x 5.25" CD-ROM
    1 x 3.5" FDD
    2 x 3.5" HDD
    Material SPEG
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Dimension Inch:19" X 18" X 3.5" (W x D x H)
    MM:448 x 450 x 89 mm(W x D x H)
    Shipping Dimension 1 PC/CTN/ 2.5 CUFT
    Weight N.W.: 8.0 KGS
    G.W.: 10.5 KGS
