CLM-7234A (2U short IPC Chassis for ATX motherboard slot#5#6)
CLM-7235A (2U short IPC Chassis for E-ATX motherboard slot#5#6)

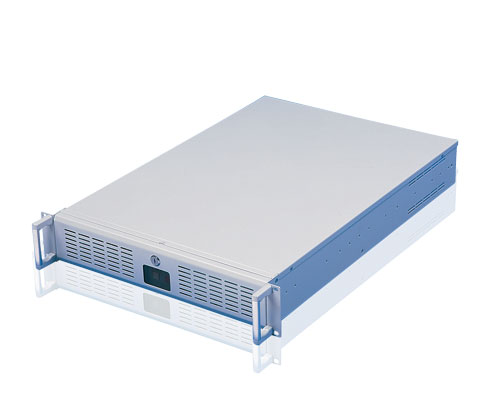

2U Rackmount IPC Chassis/ Server Case

see more:
2U Rackmount IPC Chassis/ Server Case 2U Rackmount IPC Chassis/ Server Case with the open cover the drawing of 2U Rackmount IPC Chassis/ Server Case

Feature:

  • The 2U Rackmount Server chassis
  • Good Ventilation Function by two front fans
  • Support Max to 12"x13" E-ATX Serverboard
  • Easy to install one 5.25" CD-ROM bay, 3.5 FDD bay and six 3.5" SATA HDDs
  • Easy to replace fans

  • Patent Pended Taiwan 195808 Germany 2014717.9
    USA 09/953.269 China ZL01232530.9
    Specifications:(Meets F.C.C.Class A & CE & RoHS)
    Motherboard

    7234A: Max to 12"x9.6" ATX server-board
    7235A: Max to 12"x13" E-ATX server-baord (#5, #6 Slot)

    Power Supply 2U Industrial Power Supply
    Redundant ATX Power Supply
    Fans 4 pcs x 8 x 8(cm)
    Front panel Removable Device Bay cage
    Washable Air-filter
    Lockable Front door
    Drive Bays 1 x5.25" CD-ROM
    1 x3.5" FDD
    6x3.5" HDD
    Material SPEG
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Dimension Inch: 19"x20.5"x3.5"(WxDxH)
    Shipping Dimension 1 PC/3.5 CUFT
    Weight N.W.: 11.5 KGS
    G.W.: 14.0 KGS
