CLM-52-11MAL4 (2U short IPC Chassis for Micro-ATX ,Low-profile card*4)
CLM-52-11AL7 (2U short IPC Chassis for Low-profile card*7)
CLM-52-11AH3 (2U short IPC Chassis for ATX motherboard slot#6#7)

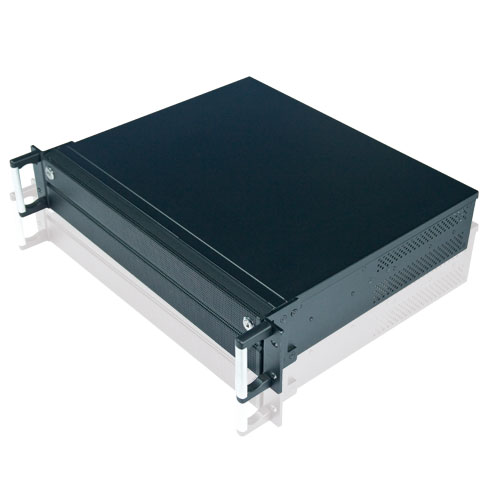

short 2U rackmount IPC chassis/ server case

52-11AH3 see more:
52-11AH3, short 2U rackmount IPC chassis/ server case 52-11AH3, short 2U rackmount IPC chassis/ server case with the open front 52-11AH3, short 2U rackmount IPC chassis/ server case with the open cover 52-11AH3, short 2U rackmount IPC chassis/ server case with the open cover 52-11AH3, short 2U rackmount IPC chassis/ server case in the rear side

52-11AL7 see more:
52-11AL7, short 2U rackmount IPC chassis/ server case with the open cover 52-11AL7, short 2U rackmount IPC chassis/ server case with the open cover 52-11AL7, short 2U rackmount IPC chassis/ server case in the rear side
52-11MAL4 see more:
Please Contact us

Feature:

  • The 2U short Rackmount Server chassis
  • Good Ventilation Function by three front fans
  • Support Max to 12"x9.6" ATX Serverboard
  • Easy to install one 5.25" bay and three 3.5" SATA HDDs
  • Easy to replace fans

  • Specifications:(Meets F.C.C.Class A & CE & RoHS)
    Power Supply AH3/AL7:Single EPS1U Power Max 400 Watts (Depth: 205mm)(Optional)
    MAL4: PS2/ATX Power Supply Unit
    Motherboard AH3/AL7:Max to 12"(W) x 9.6"(D) Compliant ATX
    MAL4: Maxt to 9.6"(W) x 9.6"(D) Micro- ATX
    Fans Front : 3 x Axial (70X70X15mm)
    Middle : none
    Rear : none
    Indicatiors LEDs 1xDisk status LED
    1xPower LED
    2xNIC LEDs
    1xFan Fault LED
    Switches Power Button ON/OFF
    Reset Button ON/OFF
    Drive Bays 1x 5.25" CD-ROM
    1x 3.5" Hard Disk (internal)
    2x 2.5" Hard Disks (internal)
    Riser Card 3x 32 bit 5V PCI
    3x 64 bit 3.3V PCI (Optional)
    2x 32 bit 5V PCI & 1x PCI Express 16x (Optional)
    2x 64 bit 5V PCI & 1x PCI Express 16x (Optional)
    Expansion Slot PCI & PCI Express Card (Max 167mm Depth)
    Air-Filter Chmical fiber washable
    Material SECCESAXZ Meets RoHs,CE,UL
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Temperature 0°C(32F) ~ 50° C(122F) (Non-operation)
    Humidity 5%~95% Non-Condensing
    Dimension MM: (W)426x(H)88x(L)368
    INCH: (W)19" x(H)3.46" x(D)14.5"
    Shipping Dimension MM: (W)546x (H)218x (L)504
    INCH: (W)21.5" x (H)8.58" x (D)19.84"
    Weight N/A
    Product Applications Web Server
    Proxy Server
    VPN Gateway
    High-End Workstation
    Print Server
