Home > Rackmount IPC Chassis > 2U IPC Chassis > CLM-52-09AH3/ AL7

CLM-52-09AL7 (2U IPC Chassis for Low-profile card*7)
CLM-52-09AH3 (2U IPC Chassis for ATX motherboard slot#6#7)

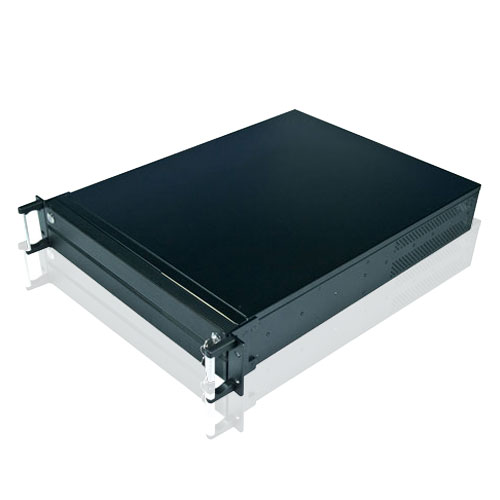

2U rackmount server chassis/ IPC case

52-09AH3 see more:
52-09AH3, 2U rackmount server chassis/ IPC case 52-09AH3, 2U rackmount server chassis/ IPC case with the open front 52-09AH3, 2U rackmount server chassis/ IPC case with the open cover 52-09AH3, 2U rackmount server chassis/ IPC case with the open cover 52-09AH3, 2U rackmount server chassis/ IPC case in the rear side

52-09AL7 see more:
52-09AL7, 2U rackmount server chassis/ IPC case with the open cover 52-09AL7, 2U rackmount server chassis/ IPC case with the open cover 52-09AL7, 2U rackmount server chassis/ IPC case in the rear side

Feature:

  • The 2U Rackmount Server chassis
  • Good Ventilation Function by three middle fans
  • Support Max to 12"x10.6" ATX Serverboard
  • Easy to install two 5.25" bays, one 3.25" FDD bay and five 3.5" SATA HDDs
  • Easy to replace fans

  • Specifications:(Meets F.C.C.Class A & CE & RoHS)
    Power Supply Single PS2 Power Max 500 Watts (Depth: 160mm)(Optional)
    Motherboard Max to 12"(W) x 10.6"(D) Compliant CEB
    Fans Front : none
    Middle : 3 x Axial (80X80X25mm)
    Rear : 1 x Axial (80X80X25mm)
    Indicatiors LEDs 1xDisk status LED
    1xPower LED
    2xNIC LEDs
    1xFan Fault LED
    Switches Power Button ON/OFF
    Reset Button ON/OFF
    Drive Bays 2x 5.25" CD-ROM
    1x 3.5" Floppy
    5x 3.5" Hard Disks (internal)
    Riser Card 3x 32 bit 5V PCI
    3x 64 bit 3.3V PCI (Optional)
    2x 32 bit 5V PCI & 1x PCI Express 16x (Optional)
    2x 64 bit 5V PCI & 1x PCI Express 16x (Optional)
    Expansion Slot PCI & PCI Express Card (Max 260mm Depth)
    Air-Filter None
    Material SECCESAXZ Meets RoHs,CE,UL
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Temperature 0°C(32F) ~ 50° C(122F) (Non-operation)
    Humidity 5%~95% Non-Condensing
    Dimension MM: (W)426 x (H)88 x (L)584
    INCH: (W)19" x (H)3.46" x (D)23"
    Shipping Dimension MM: (W)546 x (H)218 x (L)720
    INCH: (W)21.5" x (H)8.58" x (D)28.35"
    Weight N/A
    Product Applications Web Server
    Proxy Server
    VPN Gateway
    High-End Workstation
    Print Server
