Home > Rackmount IPC Chassis > 2U IPC Chassis > CLM-52-07AH3 /AL7

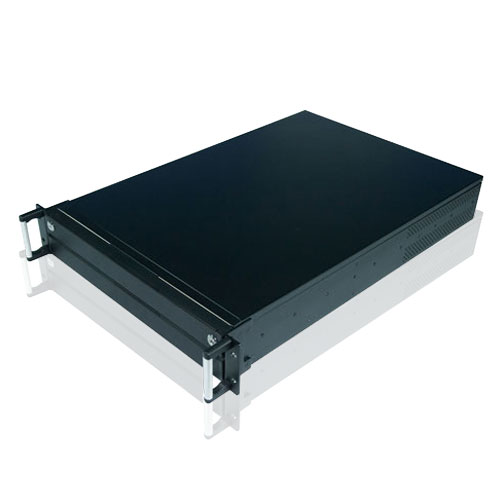

CLM-52-07AL7 (2U IPC Chassis for Low-profile card*7)
CLM-52-07AH3 (2U IPC Chassis for slot#6 PCI-E / slot#5#7 PCI)

2U rackmount storage chassis for hot-swap SATA HDD device

52-07AH3 see more:
52-07AH3, 2U rackmount storage chassis for hot-swap SATA HDD device 52-07AH3, 2U rackmount storage chassis for hot-swap SATA HDD device with the open front panel 52-07AH3, 2U rackmount storage chassis for hot-swap SATA HDD device with the open cover 52-07AH3, 2U rackmount storage chassis for hot-swap SATA HDD device with the open cover 52-07AH3, 2U rackmount storage chassis for hot-swap SATA HDD device with the open cover

52-07AL7 see more:
52-07AL7, 2U rackmount storage chassis for hot-swap SATA HDD device with the open cover 52-07AL7, 2U rackmount storage chassis for hot-swap SATA HDD device with the open cover 52-07AL7, 2U rackmount storage chassis for hot-swap SATA HDD device

Feature:

  • The 2U Rackmount Server chassis
  • Good Ventilation Function by four middle fans
  • Support Max to 12"x13" E-ATX Serverboard
  • Easy to install four 5.25" bays, one 3.25" FDD bay and two 3.5" SATA HDDs
  • Easy to replace fans

  • Specifications:(Meets F.C.C.Class A & CE & RoHS)
    Power Supply Single EPS2U Power Max 500 Watts (Depth: 240mm)(Optional)
    Redundant ERP2U Power Max 460Watts (Depth: 240mm)(Optional)
    Motherboard Max to 12"(W) x 13"(D) Compliant EEB 3.61
    Fans Front : none
    Middle : 4 x Axial (80X80X25mm)
    Rear : none
    Indicatiors LEDs 1 x Disk status LED
    1 x Power LED
    2 x NIC LEDs
    1 x Fan Fault LED
    Switches Power Button ON/OFF
    Reset Button ON/OFF
    Drive Bays 4 x 5.25" CD-ROM
    1 x 3.5" Floppy
    2 x 3.5" Hard Disks (internal)
    Riser Card 3 x 32 bit 5V PCI
    3 x 64 bit 3.3V PCI (Optional)
    2 x 32 bit 5V PCI & 1x PCI Express 16x (Optional)
    2 x 64 bit 5V PCI & 1x PCI Express 16x (Optional)
    Expansion Slot Full size PCI & PCI Express Card
    Air-Filter None
    Material SECCESAXZ Meets RoHs,CE,UL
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Temperature 0°C(32F) ~ 50° C(122F) (Non-operation)
    Humidity 5%~95% Non-Condensing
    Dimension MM: (W)426 x (H)88 x (L)660
    INCH: (W)19" x (H)3.46" x (D)26"
    Shipping Dimension MM: (W)546 x (H)218 x (L)797
    INCH: (W)21.5" x (H)8.58" x (D)31.37"
    Product Applications Web Server
    Proxy Server
    VPN Gateway
    High-End Workstation
    Print Server
