2U Rackmount IPC Chassis/ Server Case with 4 CD-ROM bays to set up hot-swap devices.
banner
Home > Rackmount IPC Chassis > 2U IPC Chassis > CLM-52-06MAL4/ AH3/ AL7

CLM-52-06AL7 (2U IPC Chassis for Low-profile card*7)
CLM-52-06AH3 (2U IPC Chassis for slot#6 PCI-E / slot#5#7 PCI)
CLM-52-06MAL4 (2U IPC Chassis for PS2/ATX PSU / Micro-ATX server-board)

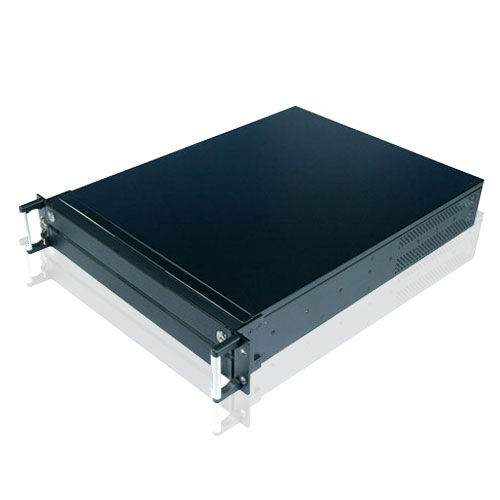

2U rackmount server chassis/ IPC case

52-06AH3 see more:
52-06AH3, 2U rackmount server chassis/ IPC case with the close front panel 52-06AH3, 2U rackmount server chassis/ IPC case with the open front panel 52-06AH3, 2U rackmount server chassis/ IPC case with the open cover 52-06AH3, 2U rackmount server chassis/ IPC case with the open cover 52-06AH3, 2U rackmount server chassis/ IPC case in the rear side

52-06AL7 see more:
52-06AL7, 2U rackmount server chassis/ IPC case with the open cover 52-06AL7, 2U rackmount server chassis/ IPC case with the open cover 52-06AL7, 2U rackmount server chassis/ IPC case in the rear side
52-06MAL4 see more:
contact us for drawing

Feature:

  • The 2U Rackmount Server chassis
  • Good Ventilation Function by four middle fans
  • Support Max to 12"x10.6" ATX Serverboard
  • Easy to install four 5.25" bays, one 3.25" FDD bay and two 3.5" SATA HDDs
  • Easy to replace fans

  • Specifications:(Meets F.C.C.Class A & CE & RoHS)
    Power Supply Single EPS2U Power Max 400 Watts (Depth: 240mm)(Optional)
    Motherboard Max to 12"(W) x 10.6"(D) Compliant CEB
    Fans Front : none
    Middle : 4 x Axial (80X80X25mm)
    Rear : none
    Indicatiors LEDs 1 x Disk status LED
    1 x Power LED
    2 x NIC LEDs
    1 x Fan Fault LED
    Switches Power Button ON/OFF
    Reset Button ON/OFF
    Drive Bays 4 x 5.25" CD-ROM
    1 x 3.5" Floppy
    2 x 3.5" Hard Disks (internal)
    Riser Card None available
    Expansion Slot PCI & PCI Express Card Low Profile Card
    Air-Filter None
    Material SECCESAXZ Meets RoHs,CE,UL
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Temperature 0°C(32F) ~ 50° C(122F) (Non-operation)
    Humidity 5%~95% Non-Condensing
    Dimension MM: (W)426 x (H)88 x (L)584
    INCH: (W)19" x (H)3.46" x (D)23"
    Shipping Dimension MM: (W)546 x (H)218 x (L)720
    INCH: (W)21.5" x (H)8.58" x (D)28.35"
    Product Applications Web Server
    Proxy Server
    VPN Gateway
    High-End Workstation
    Print Server
