Standard 2U Rackmount IPC Server Chassis compatible with ATX server-board and PS2 PSU space.
banner
Home > Rackmount IPC Chassis > 2U IPC Chassis > CLM-52-03 series

CLM-52-03AL7 (2U IPC Chassis for Low-profile card*7)
CLM-52-03AL2H3 (2U IPC Chassis for slot#4 PCI-E / slot#3#5 PCI)
CLM-52-03AL1H3 (2U IPC Chassis for slot#5 PCI-E / slot#4#6 PCI)
CLM-52-03AH3 (2U IPC Chassis for slot#6 PCI-E / slot#5#7 PCI)

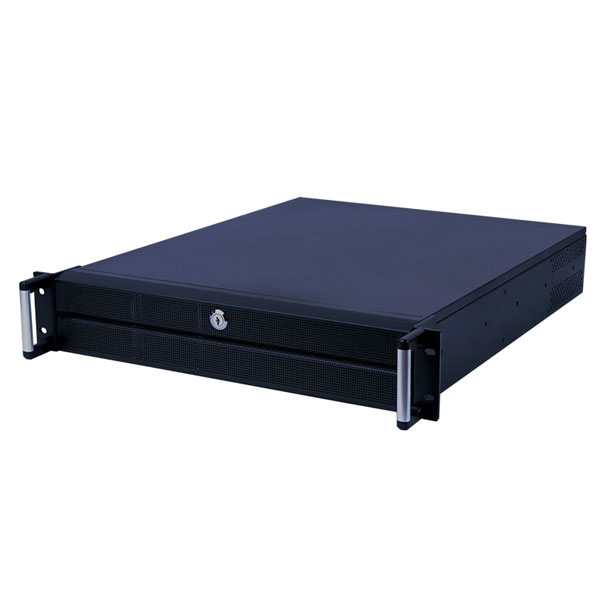

2U rackmount IPC chassis/ server case for ATX Motherboard and ATX PSU

see more:
2U rackmount IPC chassis/ server case for ATX Motherboard and ATX PSU 2U rackmount IPC chassis/ server case for ATX Motherboard and ATX PSU with the open front 52-03AL7, 2U rackmount IPC chassis/ server case for ATX Motherboard and ATX PSU with the open cover 52-03AL1H3, 2U rackmount IPC chassis/ server case for ATX Motherboard and ATX PSU with the open cover 52-03AH3, 2U rackmount IPC chassis/ server case for ATX Motherboard and ATX PSU with the open cover 52-03AL2H3, 2U rackmount IPC chassis/ server case for ATX Motherboard and ATX PSU with the open cover

Feature:

  • The most cost-effecitve 2U Rackmount IPC chassis
  • Good Ventilation Function by two rear fans
  • Support Max to 600W PFC PS2 ATX Power Supply
  • Easy to install one 5.25" bay, one 3.25" FDD bay and three 3.5" SATA HDDs
  • Easy to replace fans

  • Feature
    • RoHS compliant
    • Exellent Thermal Efficiency Construction.
    • Cost-Effective PS/2 type Power Supply Design
    • Flexible & Expandable Rear Window panel
    • ATX M/B version
    • BTX M/B version
    • Low-profile M/Bversion
    • O1.6 Dense Meshed Design for high performance air-flow front panel
    • Keylock for system security
    • Outstanding Handles
    Specifications:(Meets F.C.C.Class A & CE & RoHS)
    Applications Reference Mail / Firewall Server
    Proxy Server
    VPN Gateway
    High-end Workstation
    Print Server
    Indicatiors LEDs 1xDisk status LED
    1xPower LED
    2xNIC LEDs
    1xFan Fault LED
    Switches Power Button ON/OFF
    Reset Button ON/OFF
    2 Keylocks Security
    Connector USB 2 Ports (Option)
    Mother Board Version Intel Pentium 4 3.06GHz
    AMD K7/K8 ( Max to 12"(W)x10.6"(D) compliant ATX/SSI CEB )
    Device Bays 1x5.25" CD-ROM
    1x3.5" Floppy
    3x 3.5" Hard Disks
    Fans Front 2x(80x80x25MM)
    Rear 2x(80x80x25MM)
    (Option) Middle x2
    Material SECCESAXZ Meets RoHs,CE,UL
    Temperature 0°c ~ 35° c (Operation)
    Air-Filter 2 meshed SUS metal filters
    Dimension MM: (W)426x(H)88x(L)540
    INCH: (W)19"x(H)3.46"x(D)21.2"
    Shipping Dimension MM: (W)550x(H)243x(L)680
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Power Supply ATX 300W~600W (Optional)
    Extension Slot Form AH3
    AL1H3
    AL2H3
    AL7
    BL7
