Home > Rackmount IPC Chassis > 1U IPC Chassis > CLM-7134/7135

CLM-7134A (1U IPC Chassis for ATX M/B and 1U Industrial PSU)
CLM-7135A (1U IPC Chassis for E-ATX M/B and 1U Industrial PSU)

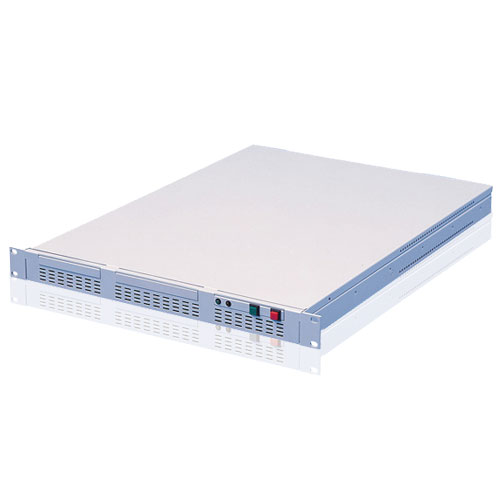

1U rackmount chassis with effective ventilation

see more:
1U rackmount chassis with effective ventilation 1U rackmount chassis with effective ventilation 1U rackmount chassis with effective ventilation and the open cover

Feature:

  • The 1U Rackmount barebone Case/ IPC chassis
  • Apply for Flex PSU
  • Support Max to E-ATX motherboard
  • Easy to install three 3.5" SATA HDDs
  • Easy to replace fans

    • Specifications：(Meets F.C.C.Class A & CE & RoHS)
    Motherboard

    CLM-7134A：ATX 9.6"x12"
    CLM-7135A：ATX Exteuded Max to 12"x13"
    Power Supply Micro-ATX 200W/250W/300W
    Fans 6 pcs x 4 x 4 x 2 (CM)
    2 pcs optional & CPU Cooler(optional)
    Front panel Removable Device Bay cage
    Washable Air-filter
    Drive Bays 1 Slim CD-ROM
    1 Slim FDD
    3 x 3.5" HDD
    Material SPEG
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Dimension CLM-7134A：
    (W)19"x (D)20.5"x(H) 1.75"
    CLM-7135A：
    (W)19" x(D) 24" x(H) 1.75"
    Shipping Dimension CLM-7134A：
    1PC/CTN/2.5 CUFT
    CLM-7135A：
    1PC/CTN/2.9 CUFT
    Weight N.W.：6 KGS
    G.W.：8 KGS
