CLM-51-32 (1.5U short IPC Chassis for Mini-ITX M/B and 1U Flex PSU)

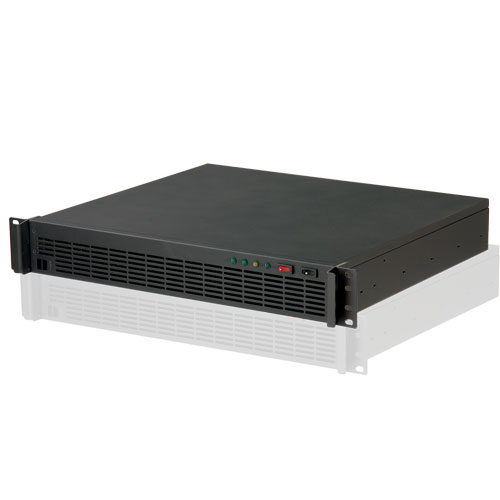

1.5U rackmount IPC chassis/ server case

see more:
1.5U rackmount IPC chassis/ server case 1.5U rackmount IPC chassis/ server case with the open cover

Feature:

  • The shortest 1.5U Rackmount barebone Case/ IPC chassis
  • Apply for Flex PSU
  • Support Max to Minit-ITX motherboard
  • Easy to install four 3.5" SATA HDDs
  • Easy to replace fans

  • Specifications:(Meets F.C.C.Class A & CE & RoHS)
    Power Supply 1U Single Power with 190~205mm Depth (Optional)
    Motherboard Max to Mini-ITX
    Fans Rear 3x (60*60*15MM)
    Front 1x Blower(97*94*33MM)
    Indicatiors LEDs 1xDisk status LED
    1xPower LED
    MIC 1 LED
    MIC 2 LED
    Front Panel Power Button ON/OFF
    Reset Button ON/OFF
    2* USB port (Optional)
    Drive Bays 4x3.5" Hard Disk
    Material SECCESAXZ Meet RoHs,CE,UL
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Chassis Dimension MM: (W)429x(H)66x(D)382
    INCH: (W)19"x(H)2.59"x(D)15"
    Shipping Dimension MM: (W)584x(H)172x(L)513
    INCH: (W)23"x(H)6.78"x(D)20.2"
    Weight N.W:N/A
    G.W:N/A
    Product Applications Web Server
    Firewall Server
    Proxy Server
    VPN Gateway DNS Server
    ISP
    Email Server
    High-End Workstation
    Riser Card (Optional) 2 x 32 bit PCI 5V
