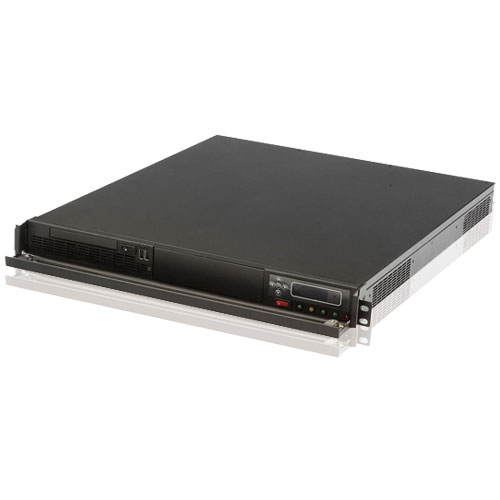

CLM-51-29 (1U Rackmount IPC Chassis for Micro-ATX M/B and 1U Industrial PSU)

1U rackmount IPC chassis/ server case, ATX Motherboard and Flex PSU

see more:
1U rackmount IPC chassis/ server case, ATX Motherboard and Flex PSU 1U rackmount IPC chassis/ server case, ATX Motherboard and Flex PSU with the open front 1U rackmount IPC chassis/ server case, ATX Motherboard and Flex PSU with the open cover

Feature:

  • The flexible 1U Rackmount IPC chassis
  • Apply for 1U Industrial PSU
  • Support Max to Micro-ATX motherboard
  • Easy to install two 3.5" SATA HDDs
  • Easy to replace fans

  • Specifications:(Meets F.C.C.Class A & CE & RoHS)
    System Boards INTEL Pentium 4 3.06 GHz
    AMD K7/K8 based boards
    Power Supply 1U Single Power with 190~205mm Depth (Optional)
    Motherboard Supply Version ATX 2.03 (Max to 9.6 "x9.6" SIZE)
    Fans Middle 2x(40x40x20MM)
    Rear 2x(40x40x20MM)
    (Option) Middle x2
    Indicatiors LEDs 1xDisk status LED
    1xPower LED
    2xNIC LEDs
    1xFan Fault LED
    Power Supply Space Max 205mm Depth
    Max 1U Height
    Switches Power Button ON/OFF
    Reset Button ON/OFF
    2 Keylocks Security
    Front Panel Port 2x USB Ports (option)
    Front Panel 1x5.25" CD-ROM
    1xSlim Floppy
    2x 3.5" Hard Disks
    No USB port
    Material SECCESAXZ Meet RoHs,CE,UL
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Temperature 0 c ~ 30 c (Operation)
    Chassis Dimension MM: (W)445x(H)45x(L)530
    INCH: (W)19"x(H)1.77"x(D)20.8"
    Shipping Dimension 2.15 cuft single packing
    4.65 pcs / 20" CTN Q'ty
    Weight N.W:4.56KG
    G.W:6.41KG
    Product Applications Web Server
    Firewall Server
    Proxy Server
    VPN Gateway DNS Server
    ISP
    Email Server
    High-End Workstation
    Riser Card (Optional) 1 x 32 bit PCI 5V or 1 x AGP
