Home > Rackmount IPC Chassis > 1U IPC Chassis > CLM-51-28

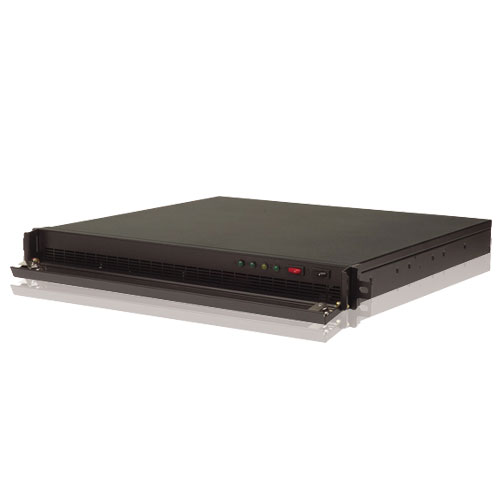

CLM-51-28 (1U Rackmount IPC Chassis for ATX M/B and 1U Industrial PSU)

1U rackmount IPC chassis, ATX Motherboard and Flex PSU

see more:
1U rackmount IPC chassis, ATX Motherboard and Flex PSU 1U rackmount IPC chassis, ATX Motherboard and Flex PSU with the open cover 1U rackmount IPC chassis, ATX Motherboard and Flex PSU with the open front

Feature:

  • The flexible 1U Rackmount IPC chassis
  • Apply for 1U Industrial PSU
  • Support Max to ATX motherboard
  • Easy to install two 3.5" SATA HDDs
  • Easy to replace fans

  • Specifications:(Meets F.C.C.Class A & CE & RoHS)
    System Boards INTEL Pentium 4
    AMD K7/K8 based boards
    Power Supply 1U Single Power with 190~205mm Depth (Optional)
    Motherboard Supply Version ATX (Max to 12"x9.6" SIZE)
    Fans Rear 2x(10x10x20MM)
    Fronl 1x Blower (97x97x33MM)
    Indicatiors LEDs 1xDisk status LED
    1xPower LED
    MIC 1 LED
    MIC 2 LED
    Front Panel Power Button ON/OFF
    Reset Button ON/OFF
    No USB port
    Drive Bays 2x3.5" Hard Disk
    Material SECCESAXZ Meet RoHs,CE,UL
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Chassis Dimension MM: (W)429x(H)44x(D)382
    INCH: (W)19"x(H)1.72"x(D)15"
    Shipping Dimension MM: (W)518x(H)130x(L)570
    INCH: (W)20.4"x(H)5.12"x(D)22.5"
    Weight N.W:4.51KG
    G.W:6.36KG
    Product Applications Web Server
    Firewall Server
    Proxy Server
    VPN Gateway
    DNS Server
    ISP
    Email Server
    High-End Workstation
    Riser Card (Optional) 1 x 32 bit PCI 5V or 1 x AGP or 1x PCI-E slot
