CLM-51-22 (1U IPC Chassis for ATX M/B and 1U Industrial PSU)

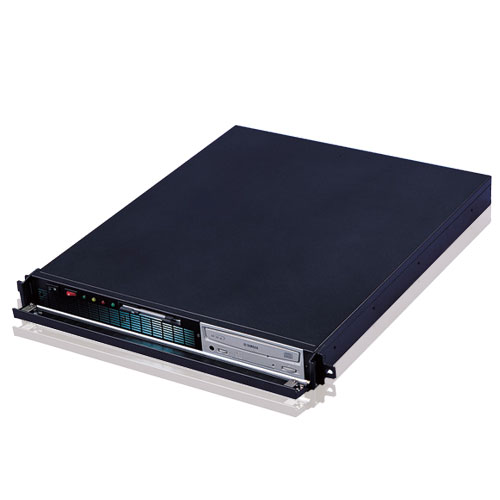

1U rackmount IPC chassis/ server case

see more:
1U rackmount IPC chassis/ server case 1U rackmount IPC chassis/ server case with the open cover 1U rackmount IPC chassis/ server case with the open front

Feature:

  • The high-performance 1U Rackmount Server Case/ IPC chassis
  • Good Ventilation Function by fans in the middle
  • Support Max to ATX server-grade motherboard
  • Easy to install one 5.25" bay, one slim FDD bay and two 3.5" SATA HDDs
  • Easy to replace fans

  • Feature The new, rack-optimized CLM51-22 can help streamline both you IT infrastructure and your IT spending.It delivers a cost-saving, dedicated solution to space constrained environments , in and incredibly small 20" inch deep package. Built into one of the most efficient 1U designs on the market, the 51-22 single processor/dual hard drive configurations are ideal for edge-of-network serving.
    Specifications:(Meets F.C.C.Class A & CE & RoHS)
    Power Supply TC-1U300 (W100XH40.5XD200) 300W
    TC-1U350 (W100XH40.5XD200) 350W
    P1G-6305P (W100XH40.5XD205) 300W
    Motherboard Support Version ATX
    (Max 12"x9.6" SIZE)
    Fans 4PCS 40X40X28mm (High Rotation)
    (Ball Bearing) 3PCS (Option)
    Air Flow:23.5 CFMX4
    Rated Speed 15500 RPM ± 10%
    Indicatiors LEDs 1xDisk Drive status LED
    1XPower LED
    NIC LED1
    NIC LED2
    Drive Bays 1 x 5.25" CD-ROM
    2 x 3.5" IDE Hard Disk
    1 x Slim Floppy(W96 x D12.7 x H128mm)
    Switches Power ON/OFF
    Reset ON/OFF
    Temperautre 0℃ ~ 45℃ Environment Temperature
    Material SECCESAXZ Meet RoHs,CE,UL
    Finished Black(RAL 9011)
    Beige(RAL 7035)
    Chassis Dimension MM: (W)429 x (H)44 x (D)508
    INCH: (W)19" x (H)1.73" x (D)20"
    Riser Card (Optional) 1 x 32 bit PCI 5V or 1x PCI-E(16x,8x,4x,1x)
